Replacing Cab Recirculation Filters

CAUTION: Cab air filters are not designed to filter out harmful chemicals. Follow the instructions in the implement operator's manual and those given by the chemical manufacturer when using agricultural chemicals. * Interval may vary according to operating conditions

RXA0099070
RXA0099070-UN-18SEP08

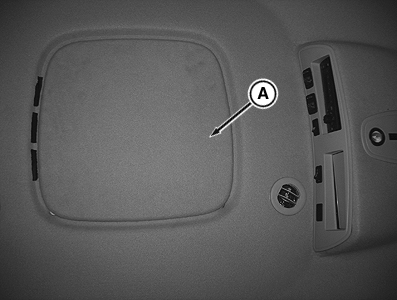

Remove Roof Upholstery

RXA0100957
RXA0100957-UN-17MAR09

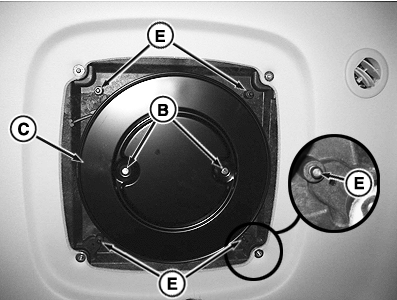

Remove Cover

RXA0100959
RXA0100959-UN-17MAR09

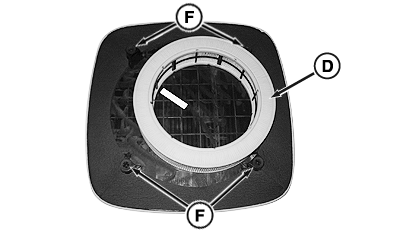

Remove Filter

A - Upholstery Cover

B - Fasteners

C - Cover

D - Filter

E - Ball Stud

F - Clip Nuts

  1. Remove upholstery cover (A) in the headliner by grabbing outer edges and pulling down.

    NOTE: When removing fasteners (B), hold cover (C) in place with one hand.

  2. Remove fasteners allowing cover to be lowered.

    NOTE: Using a clean cloth, wipe down inside and outside filter cover before installing new filter.

  3. Remove and inspect condition of filter.

  4. Replace filter (D) at 1000 hours, annually or as required whichever comes first.

  5. Re-install cover (C).

  6. Re-install cover panel by lining up ball studs (E) with clip nuts (F) and pushing up.
