Replacing Cab Fresh Air Filters

RXA0119346
RXA0119346-UN-09AUG11

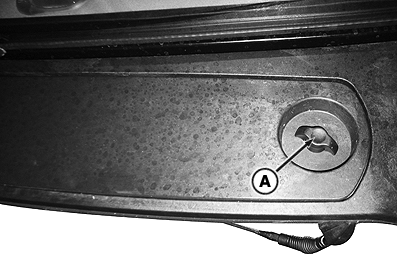

Turn Knob While Supporting Cover

RXA0119347
RXA0119347-UN-09AUG11

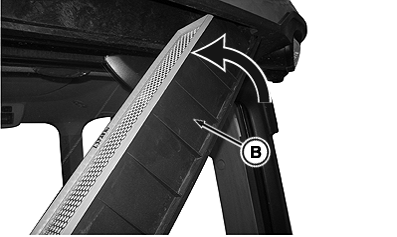

Let Cover Swing Down Toward Rear Of Tractor, Then Cover Can Be Removed

RXA0119348
RXA0119348-UN-09AUG11

RXA0119349
RXA0119349-UN-09AUG11

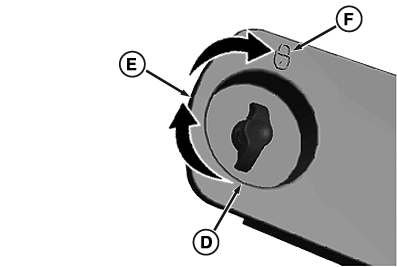

Three Position Filter Cover

A - Knob

B - Cover

C - Filter

D - Open Position

E - Latched Position

F - Locked Position

  1. While supporting cover, turn knob (A) counter clockwise allowing cab air filter in cover (B) to swing down toward tractor rear. Although filter is normally removed from cover at this point, entire cover can be removed by rotating filter cover rear forward as indicated.

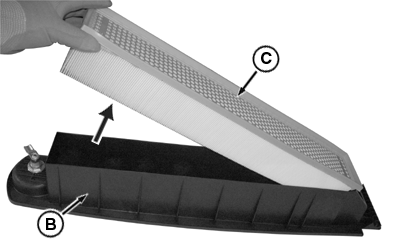

  2. Remove old filter (C).

  3. Inspect filter condition. Replace if dirty, ripped, damaged, at 1000 hours, annually or as required whichever comes first.

  4. Using a clean cloth, wipe down inside and outside filter cover before installing new filter.

    NOTE: Filter cover has three positions; open (D), latched (E) and locked (F).

  5. Close cover and turn knob clockwise 180° so that latch is locked.

OURX935,00003D3-19-20110818
