Services Included In 1000 Hour Service

When scheduled service at any hourly level is performed, also perform all subordinate hourly level services. See Section 95, Observe Service Intervals for table listing main and subordinate service tasks.

RXA0116958
RXA0116958-UN-09AUG11

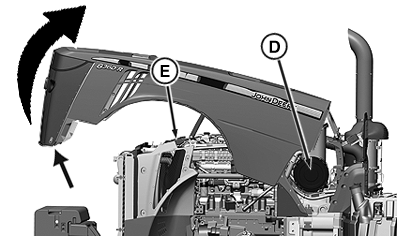

500 Hour Services-Side View With Hood Open

RXA0120044
RXA0120044-UN-01SEP11

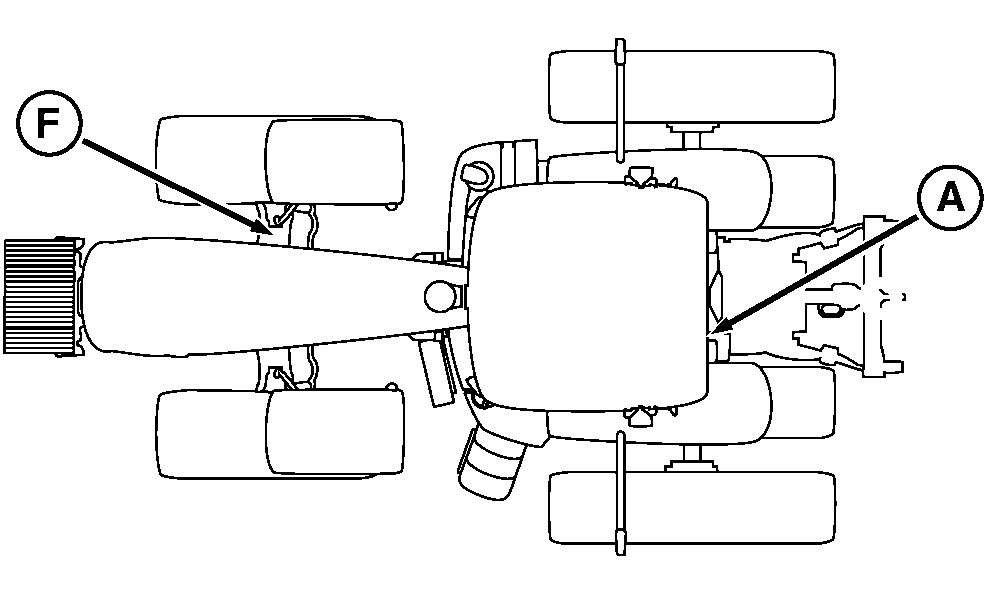

1000 Hour Services — Overhead View

RXA0116941
RXA0116941-UN-06SEP11

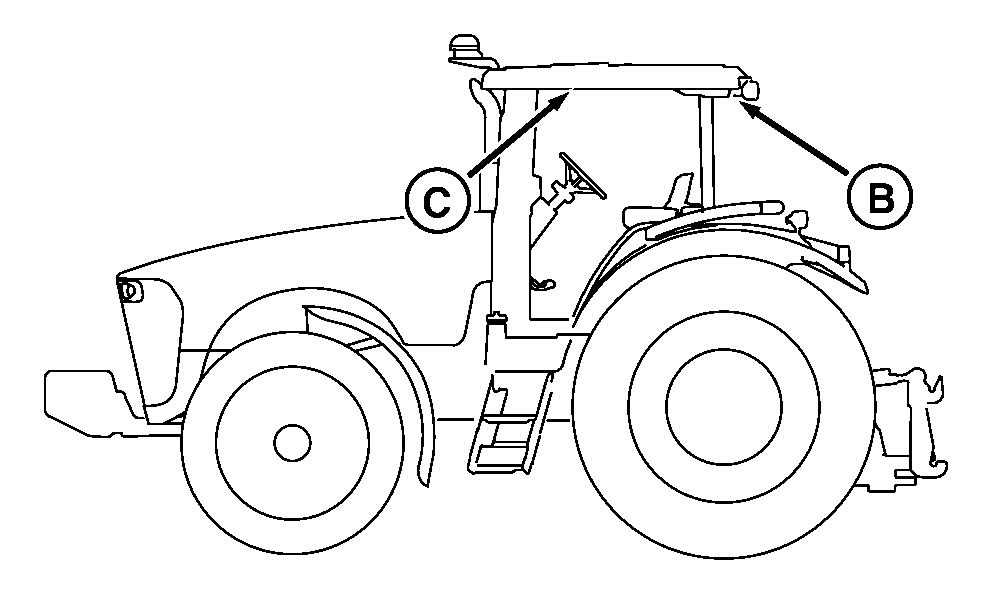

1000 Hour Services — Side View

Grasp ring, pull out and swing hood open

Annual services are indicated on tractor silhouette.

  • A — Cleaning Fuel Tank Vent Filter
  • B — Replacing Cab Fresh Air Filter 1
  • C — Replacing Cab Recirculation Filter 1
  • D — Replacing Primary And Secondary Engine Air Filters 2
  • E — Testing The Coolant
  • F — Cleaning MFWD Axle Filter

1 Replace at 1000 hours, annually, as Required, whichever comes first. See Annual Services Section in this Operator’s Manual.
2 Replace at 1000 hours, annually, as indicated, whichever comes first. See Annual Services Section in this Operator’s Manual.

OURX935,00003D5-19-20110915
