Services Included In 500 Hour Service

When scheduled service at any hourly level is performed, also perform all subordinate hourly level services. See Section 95, Observe Service Intervals for table listing main and subordinate service tasks.

RXA0117842
RXA0117842-UN-09AUG11

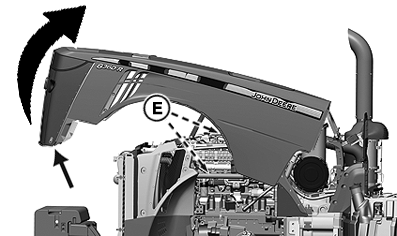

500 Hour Services-Side View With Hood Open

RXA0120125
RXA0120125-UN-06SEP11

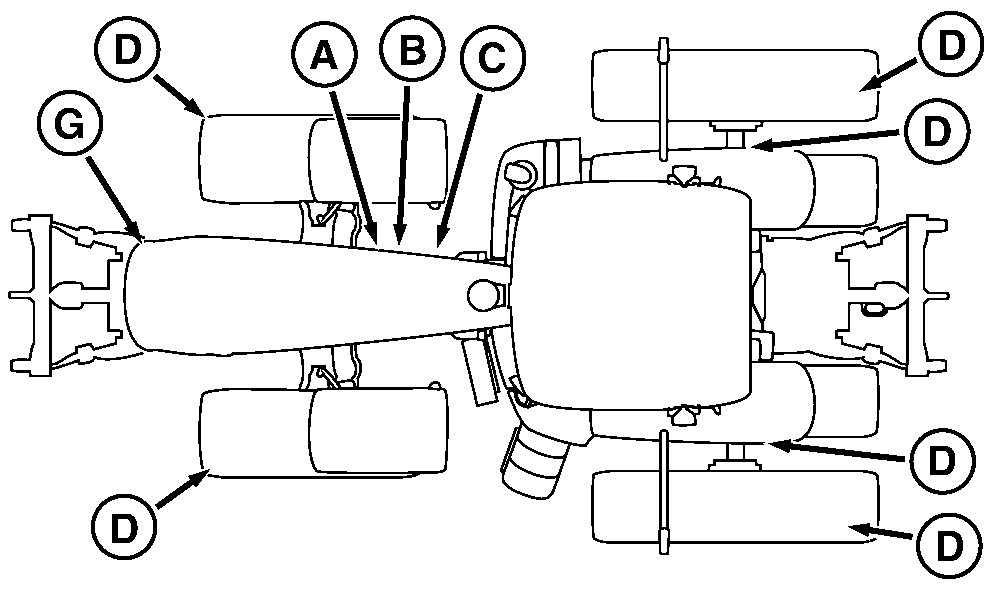

500 Hour Services-Overhead View

RXA0119135
RXA0119135-UN-09AUG11

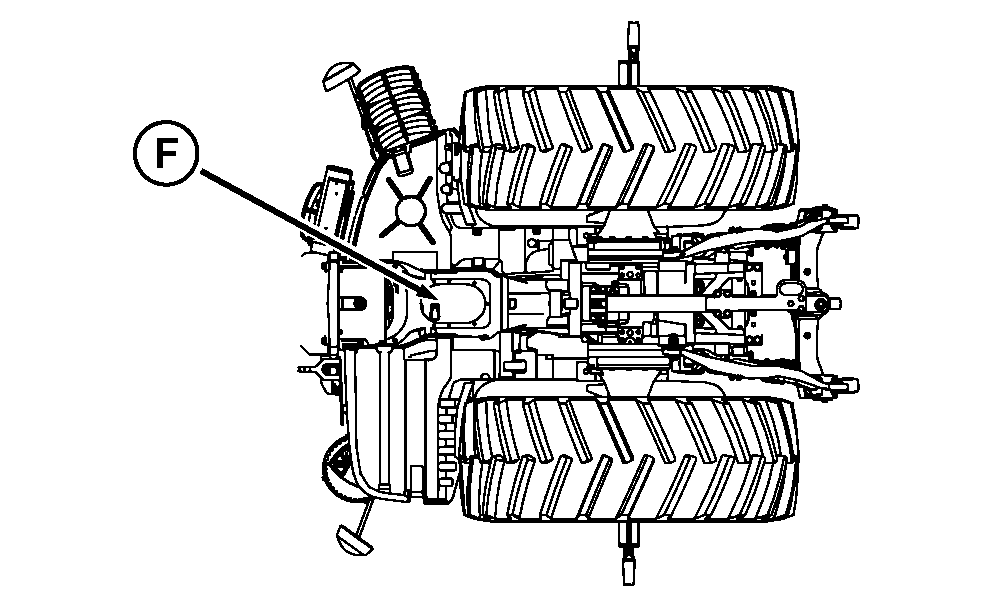

500 Hour Services-Underside View

500 hour services are located on tractor silhouette and are listed:

To open hood, grasp ring, pull out and swing hood open.

  • A — Changing Engine Oil and Filter 1
  • B — Replacing Fuel Filters
  • C — Cleaning Optional Fuel Water Separator
  • D — Checking Wheel and Wheel Weight Bolts
  • E — Checking Air Intake System
  • F— Checking Dual Beam Radar
  • G — Lubricating Front PTO Drive Shaft

1 Replace at 500 hours or annually, whichever comes first. See Annual Services section of this Operator’s Manual.

OURX935,00003DE-19-20110915
