Rear Drive Wheel — Adjusting and Tightening

RXA0056944
RXA0056944-UN-10OCT01

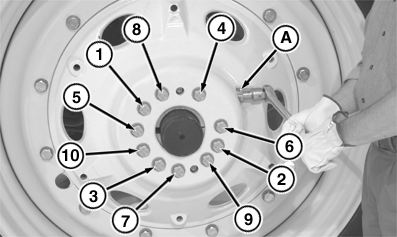

10 Bolt Drive Wheel With Pinion

RXA0090157
RXA0090157-UN-08AUG06

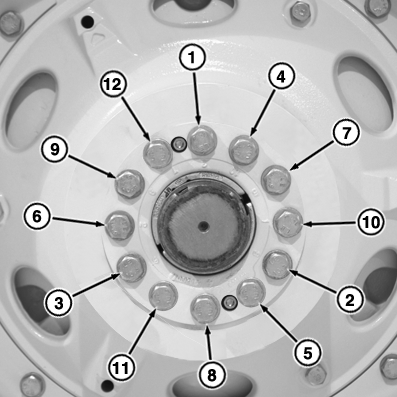

12 Bolt Heavy Duty Drive Wheel

A - Pinion

CAUTION: Avoid personal injury. Never run the engine with transmission in gear and rear wheels off the ground. MFWD wheels could pull rear wheels off support. Disengage MFWD and put transmission in NEUTRAL to rotate axle. Never operate tractor with a loose rim, wheel, or hub.

IMPORTANT: Carefully follow procedure. Failure to do so could lead to wheel hub damage.

Tractors are equipped with 12 bolt heavy-duty wheels or 10 bolt hubs. Numbers indicating proper torquing sequence are cast into wheel hub.

Clean any paint, grease, film, rust or debris from axle shafts prior to positioning and installing wheel hubs and sleeves. DO NOT apply any lubricant to cap screws or threads.

  1. Raise the tractor on level ground and support tractor with jack stands. If equipped, rotate wheel with rack upward on the axle.

  2. Loosen (without removing) sleeve bolts just enough to move wheel. if equipped, turn pinion gear (D) to move wheel to desired position

    IMPORTANT: Do not loosen or remove the two Allen head screws. Doing so could result in wheel jamming or damage.

  3. NOTE: Adjusting tool is not compatible with heavy-duty wheel hub.

    Move wheel to desired position.

  4. While making sure wheel is perpendicular to axle tighten bolts by hand, then using same sequence, torque cap screws to initial specification.

    ItemMeasurementSpecification
    Sleeve Cap Screws Initial Torque405 N·m 300 lb-ft

  5. Torque sleeve cap screws to final torque specification.

    ItemMeasurementSpecification
    Sleeve Cap Screws Final Torque610 N·m 450 lb-ft

    IMPORTANT: Repeat torquing pattern until ALL sleeve cap screws maintain proper torque. Failure to follow procedure could result in damage to equipment and may result in personal injury.

  6. Drive tractor a minimum of 100 meters (110 yd) and tighten bolts in numerical order until bolts maintain torque of 610 N˙m (450 lb-ft).

  7. IMPORTANT: wheel sleeve may loosen in as little as 4-5 hours of operation resulting in damage to equipment. Torque wheel sleeve cap screws after working 3 HOURS, 10 HOURS, and DAILY during the first week of operation.
