Information Indicators
NOTE:
RXA0109847-UN-20AUG10

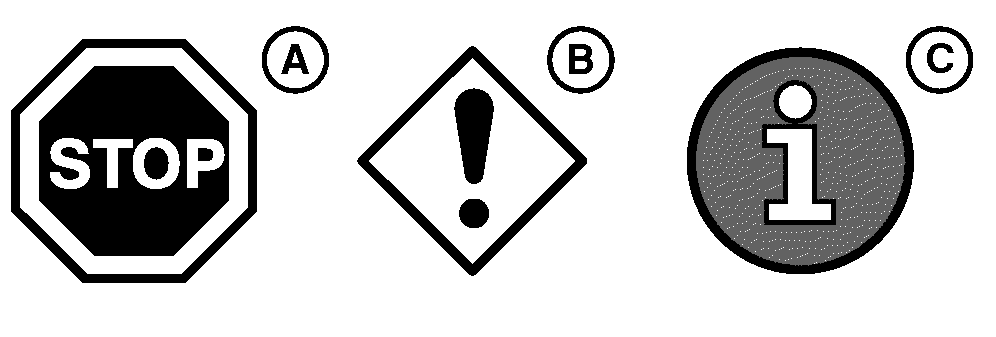

Corner Post Display
A - STOP Indicator
B - Service Alert Indicator
C - Information Indicator
All STOP, Service Alert, and Information Indicators are accompanied by an informative message, diagnostic trouble code, and/or fault description shown on CommandCenter. For detailed description on indicators and codes associated with indicators, see STOP, Service Alert and Information Indicators in Diagnostic Trouble Codes section of this Operator's Manual.STOP Indicator (A): Light flashes and alarm sounds continuously.
IMPORTANT: Engine shuts down automatically if STOP signal is received when operator is out of the seat for longer than three seconds and the transmission control is in PARK. CommandCenter display can be reset by cycling key switch.
Service Alert Indicator (B): Light flashes and alarm sounds five times indicating a performance or operational problem has been detected, which needs to be resolved as soon as possible.
Information (INFO) Indicator (C): Light comes on continuously and alarm sounds for two seconds, indicating a fault condition.
|
