Independent Link Suspension Accumulators (If Equipped)

RXA0085582-UN-06JAN06

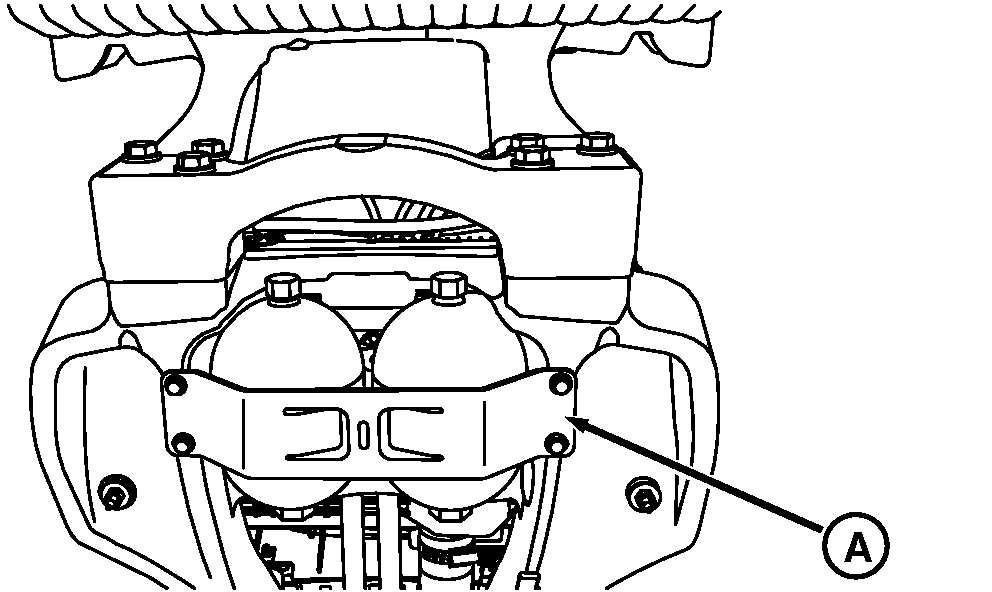

Independent Link Suspension Accumulator—Standard Configuration

RXA0110601-UN-02SEP10

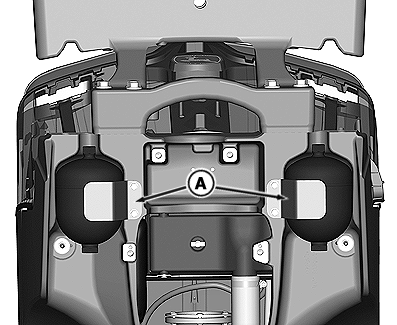

Independent Link Suspension Accumulator—Configured For Factory Installed Front Hitch

RXA0068157-UN-22JUN03

A—Caution Decal On Accumulators

RXA0085581-UN-06JAN06

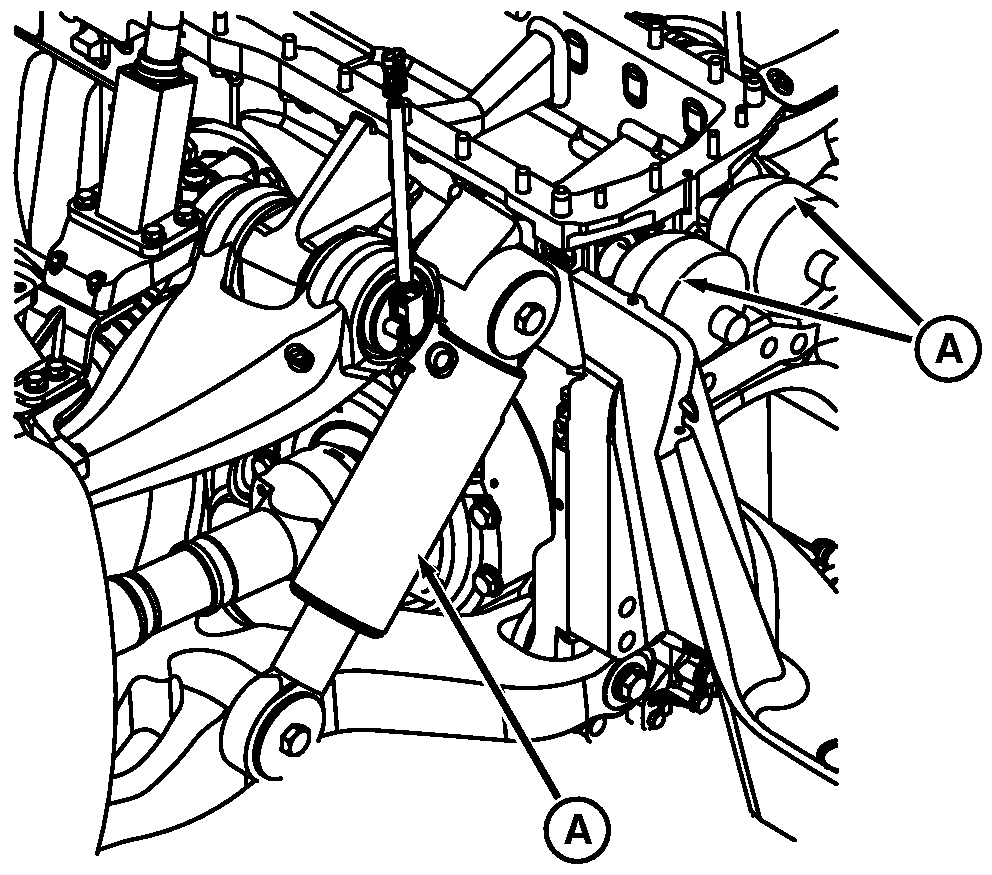

Independent Link Suspension Accumulator—ILS Cylinders

Caution: Accumulators maintain hydraulic fluid under pressure for front axle suspension.

Read Technical Manual and follow all safety precautions before performing maintenance on accumulators.
