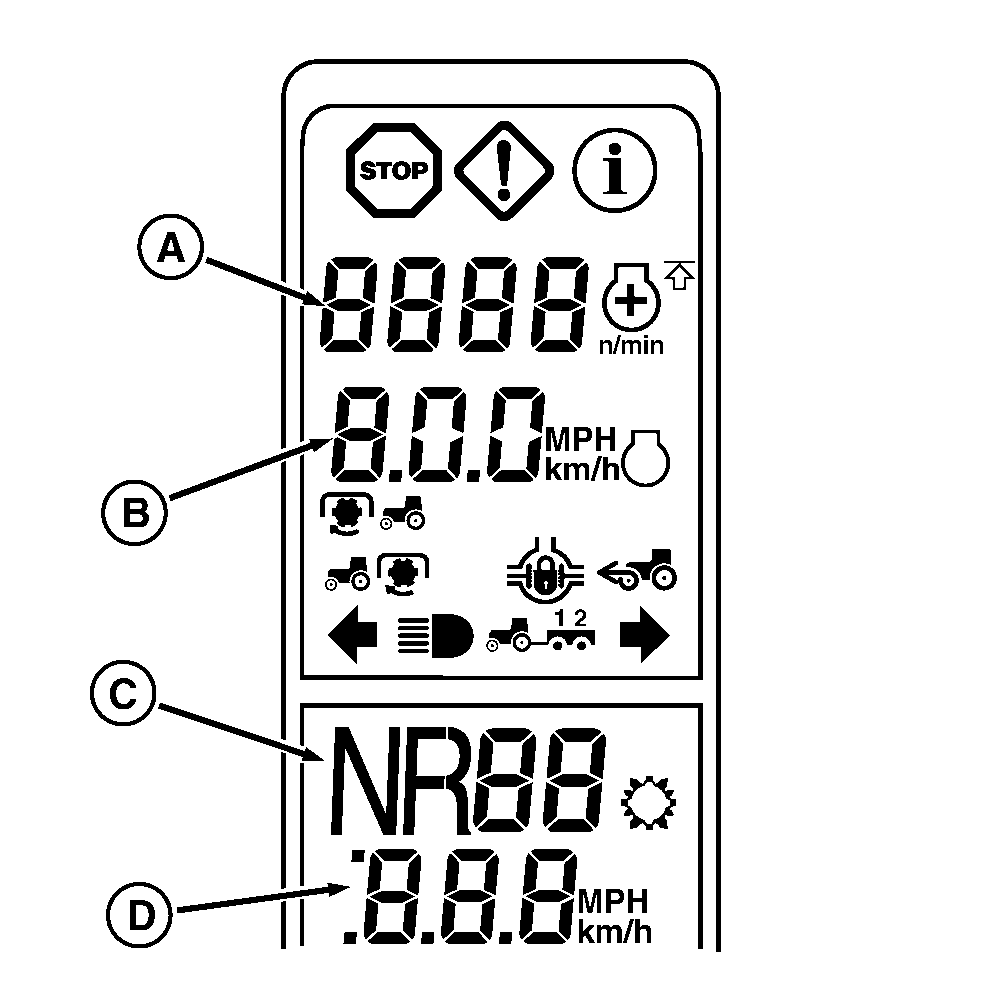

Digital Indicators—Tachometer, Ground Speed and Transmission

RXA0119762-UN-17AUG11

A - Tachometer

B - Travel Speed Indicator

C - Transmission Information

D - Set Speed

A—Tachometer: Displays engine speed in multiples of 10. If ”- - -” is displayed, no speed signal is being received.

B—Travel Speed Indicator: Displays travel speed in either miles-per-hour or kilometers-per-hour, depending on operator selected units (U.S. or Metric).

If ”- - -” is displayed, no speed signal is being received.

C—Transmission Information: Shows if transmission is in Neutral—N, Forward—F, Reverse—R or Park—P.

If ”- - -” is displayed, no gear signal is being received.

IVT/AutoPowr/ Only: Shows speed bands 1 or 2 and speed settings.

PST Only: Shows gear selected.

D — Set Speed: displays speed set using the set speed adjuster¹.
