Lubricating Rear Hitch Components

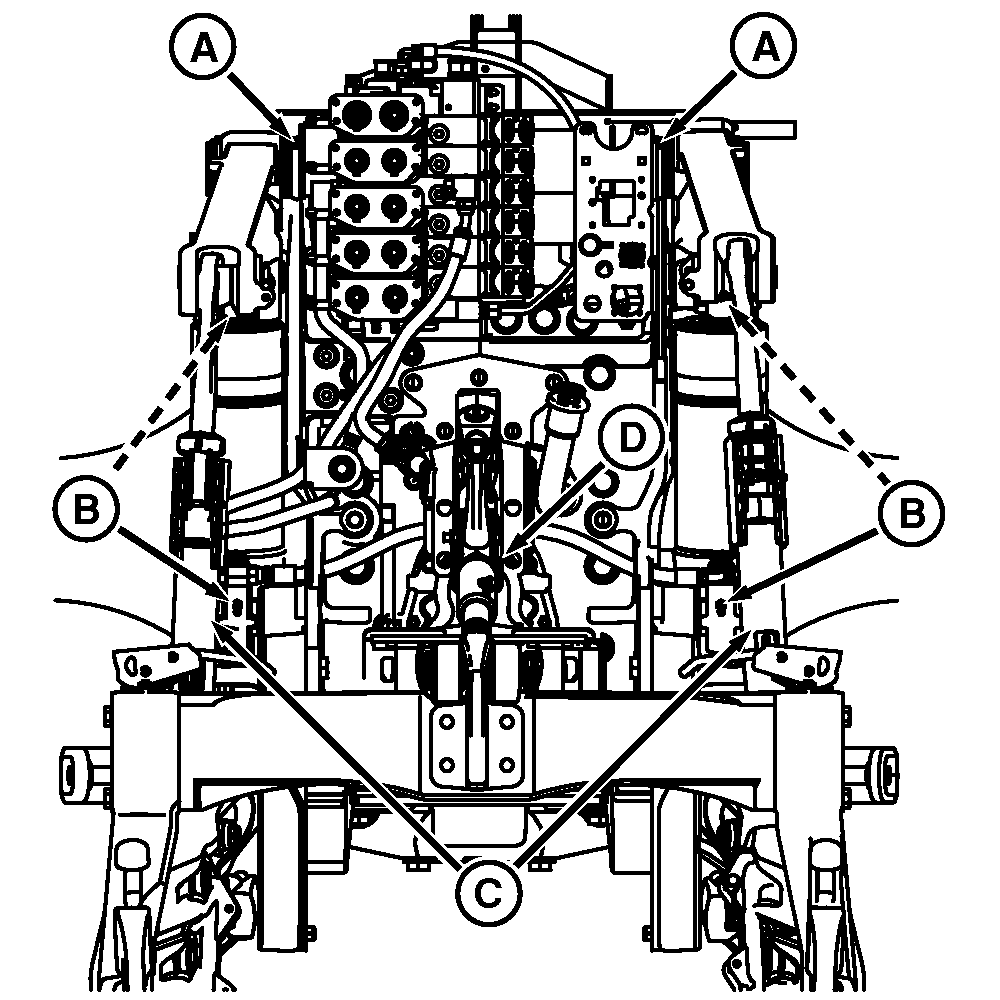

RXA0097174-UN-22FEB08

A - Rockshaft

B - Lift Cylinders

C - Lift Links

D - Center Link

Use John Deere SD Polyurea grease or other grease as specified in Fuel, Lubricants and Coolant section.

Lubricate hitch components (A—D).
