Checking Neutral Start System—IVT/AutoPowr Transmission

1. Make sure that everyone is clear of tractor.

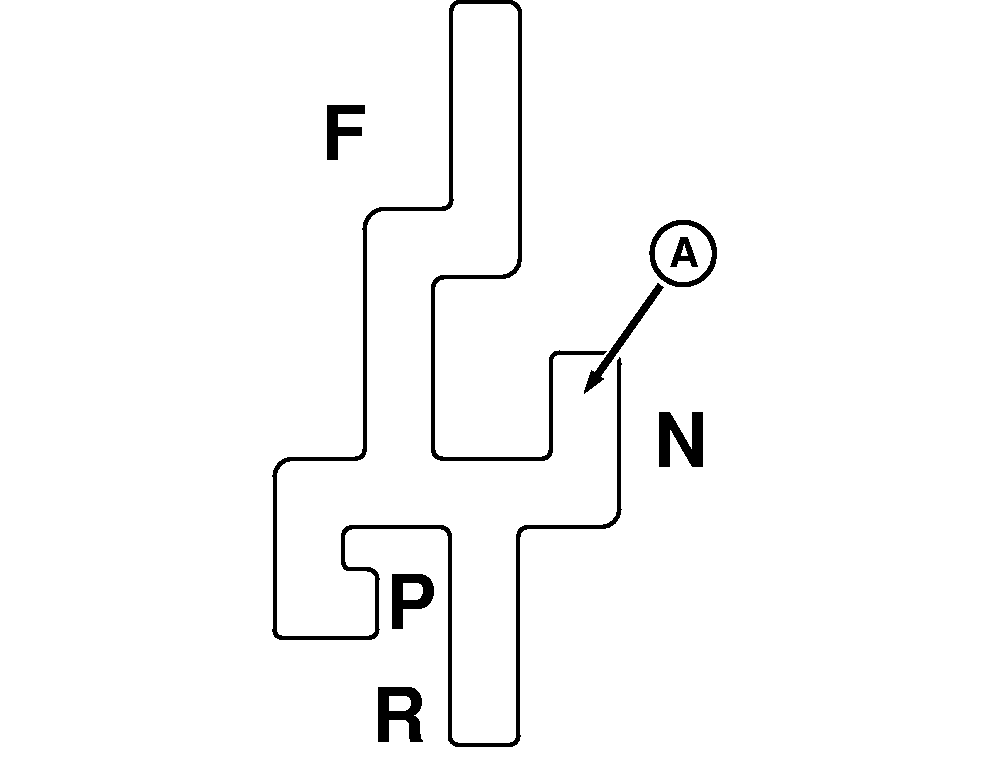

   RXA0082370-UN-21JUL05

   IVT/AutoPowr Transmission Right-Hand Reverser in Neutral

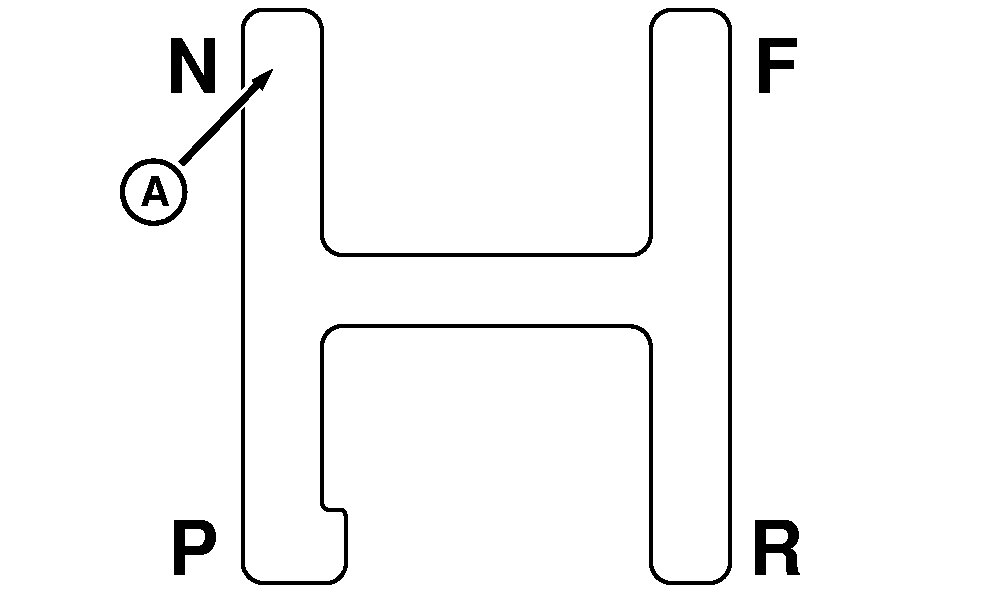

   RXA0082368-UN-21JUL05

   IVT/AutoPowr Transmission Left-Hand Reverser in Neutral

   A - Reverser Lever in Neutral

---




2. Fully depress clutch and brake pedals.

3. Move left-hand reverser to any position except NEUTRAL or PARK position.

4. Start engine. If engine starts in any of these positions, neutral start system should be repaired. See your John Deere dealer immediately.

For IVT/AutoPowr tractors equipped with left-hand reverser, engine will start in NEUTRAL or PARK positions.

For IVT/AutoPowr tractors equipped with right-hand reverser, engine will only start in PARK.
