Checking Transmission PARK Position

NOTE: For tractors equipped with PowerShift transmission, shift lever must be in PARK.

For tractors equipped with IVT/AutoPowr transmission, reverser lever must be in PARK.

RXA0086598
RXA0086598-UN-09FEB06

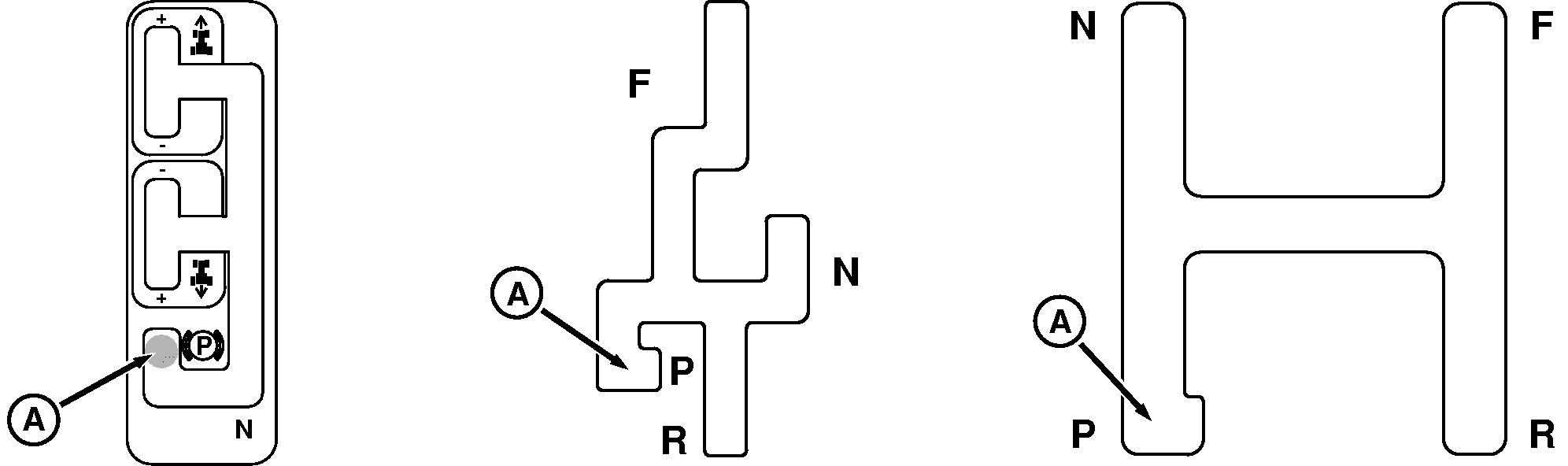

PowerShift Transmission Shift Lever, IVT/AutoPowr Left-Hand And Right-Hand Reversers In PARK position

A - Shift/Reverser Lever in PARK

Position tractor on a 30% incline (1 m (3.3 ft) vertically for every 3 m (9.8 ft) horizontally) with front of tractor facing downward.

Move shift/reverser lever (A) to PARK position.

If tractor does not hold on incline with shift/reverser lever in PARK position, see your John Deere dealer to have transmission repaired immediately.

OURX935,0000465-19-20110630
