Lubricating MFWD King Pins, Tie Rod Ends, Axle Pivot Fittings And U-Joints

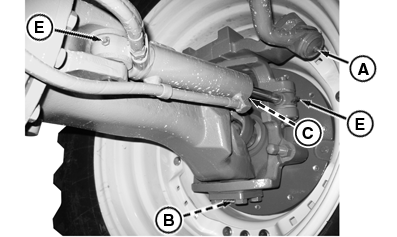

RXA0109849
RXA0109849-UN-20AUG10

Kingpins, Tie Rods and Steering Cylinder

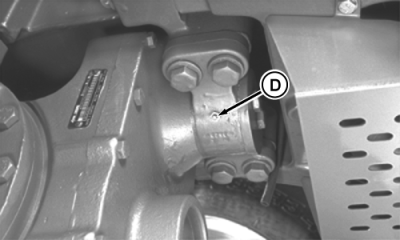

RW56652A
RW56652A-UN-22OCT99

Kingpins, Tie Rods and Steering Cylinder

A - Tie Rod Fittings

B - Kingpin Fittings, Bottom

C - Kingpin Fitting, Top

D - Axle Pivot Fittings

E - Steering Cylinder Fittings

F - Kingpin Fittings, Top, Left Side

Use John Deere SD Polyurea grease or other grease as specified in Fuel, Lubricants and Coolant section.

When AutoTrac is used, service daily or every 10 Hours.

Kingpins—Lubricate fittings (B and C) until grease appears at orifice on bottom end of each kingpin bearing.

Tie Rods—Lubricate fittings (A).

Steering Cylinder—Lubricate fittings (E).

Axle Pivot—Lubricate front and rear fittings (D).

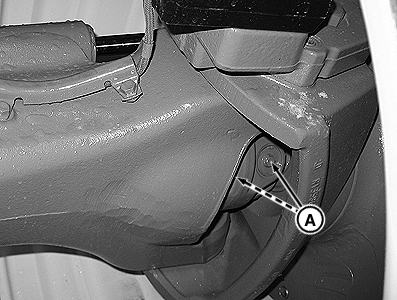

RXA0095783
RXA0095783-UN-21AUG07

1300 MFWD Axle

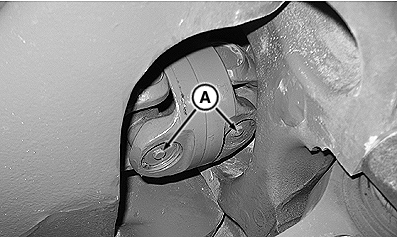

RXA0095780
RXA0095780-UN-21AUG07

1500 MFWD Axle

A - Plug

Use John Deere SD Polyurea grease or other grease as specified in Fuel, Lubricants and Coolant section. In extremely wet conditions service daily or every 10 Hours.

Apply grease to both U-joints, using fitting (A).

Drilled passages in the cross allow grease to reach all four bearings from a single grease fitting.

For normal operations, outboard U-joints are sealed and not equipped with grease fittings. For extremely wet conditions:

  1. Replace plugs (A) with M10 thread 90° grease fittings, part number 58M5580.
  2. Lubricate U-joints.
  3. Replace grease fitting with plug and tighten to torque specification.

    ItemMeasurementSpecification
    PlugTorque0.904 Nm (8 lb-in)

OURX935,0000466-19-20110630
