Checking MFWD or Independent Link Suspension Wheel Hub Oil Level

Park tractor on level ground. Maneuver tractor forward or backward until the words OIL LEVEL cast into wheel hub are horizontal. Remove wheel hub drain/fill plug (A). Oil level should be at bottom of fill hole. If oil level is low, fill to bottom of fill hole withJohn Deere™ GL-5 Gear Lubricant as specified in Gear Lube in Fuel, Lubricants and Coolant section of this Operator’s Manual. Install and tighten drain/fill plug. Repeat procedure with other wheel hub.

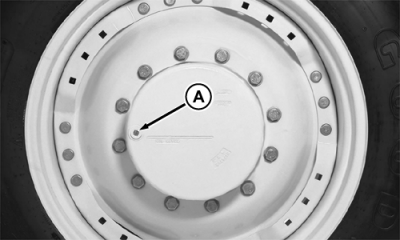

RW26335-UN-25JUN99

A - Drain/Fill Plug
