Lubricating Front PTO Drive Shaft (If Equipped)

1. Remove and retain four cap screws (A) and panel (B).


   RXA0113417-UN-24JAN11

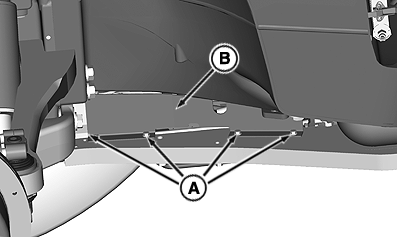

   Remove Cap Screws and Panel. For Illustration Purposes, Front Wheel Removed To Clarify Location.


   RXA0113418-UN-24JAN11

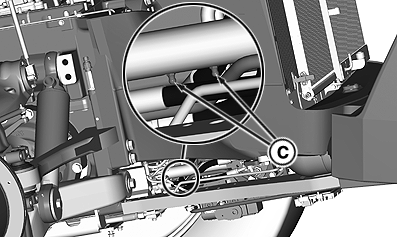

   Lube Front PTO Drive Shaft Fittings

   A - Cap Screws

   B - Panel

   C - Grease Fittings

   NOTE: Use John Deere SD Polyurea grease or other grease as specified in Fuel, Lubricants and Coolant section to lubricate front PTO drive shaft.

---




2. Grease two grease fittings (C) on drive shaft.

3. Install panel, four cap screws and torque to specification.

Item	Measurement	Specification
Front PTO Panel Cap Screws	Torque	11.5 N·m (102 lb.-in.
