Draining Differential And Clean Oil Reservoir

IMPORTANT: Change oil in clean oil reservoir immediately if oil is contaminated with water.

RXA0078660-UN-21JAN05

RXA0110091-UN-26AUG10

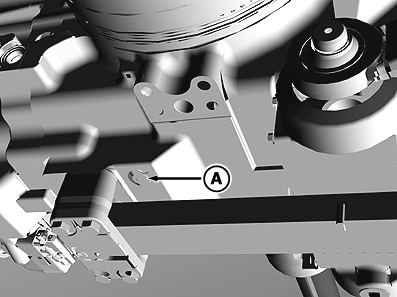

A - Differential Drain Plug

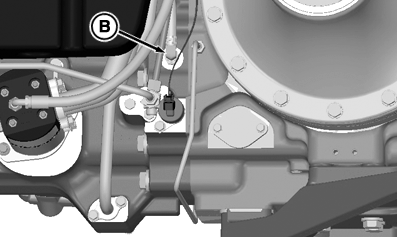

B - Clean Oil Reservoir Drain Plug

1. Park tractor on level ground (in a shop) with hitch lowered.

2. Place drain pan under differential case.

3. Remove drain plug (A) on bottom of rear differential case. Retain drain plug for reinstallation.

4. After used oil is completely drained, reinstall drain plug.

5. Dispose of used oil in accordance with local laws and ordinances.

   NOTE: If tractor is equipped with ActiveSeat disconnect elbow and a return oil line to drain clean oil reservoir.

6. Place drain pan under clean oil reservoir drain plug.

7. Remove clean oil reservoir drain plug (B) to drain oil in catch pan.

8. Place drain plug in a safe place so that it can be reinstalled before refilling.

9. After oil is completely drained, reinstall drain plug.

10. Dispose of used oil in accordance with local laws and ordinances.

11. For tractors with PowerShift (PST) transmission, proceed to Draining PST Transmission in this section.

    For tractors with IVT/AutoPowr transmission, proceed to Draining IVT/AutoPowr Transmission and Screen in this section.
