Draining Water Separator

IMPORTANT: Tractor warranty is void if power level is changed from factory specifications.

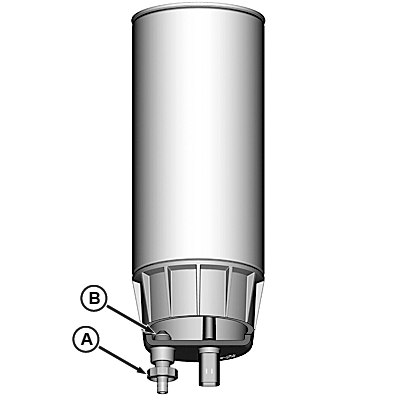

RG18026-UN-03FEB10

Water Separator

A - Drain Valve Nut

B - Tabs

Do not attempt to service injection pump or fuel injectors yourself. Special training and special tools are required. See your John Deere dealer.

NOTE: When separator sensor identifies water in the fuel system, the service alert indicator will flash on the corner post display. An alarm will sound for five seconds and a corresponding message appears on the CommandCenter display.

NOTE: Water in fuel collects in the bottom of the fuel filters. Loosening drain valve nut (A) causes tabs (B) to drop down allowing water to drain.

Turn drain valve nut counterclockwise all the way open to drain water.
