Transmission-Hydraulic System Warm-Up

RXA0100362-UN-03FEB09

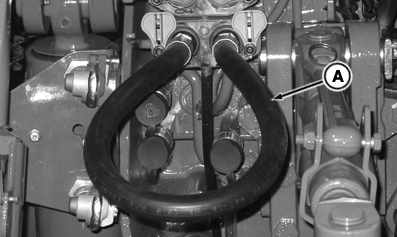

Install Jumper Hose Into SCV Coupler

RXA0116593-UN-12MAY11

CommandARM Menu button → CommandCenter SCV

RXA0117823-UN-10JUN11

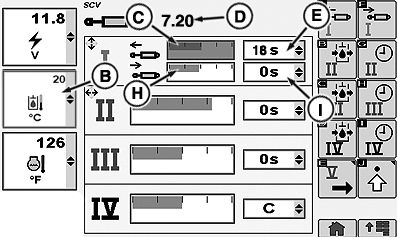

CommandCenter Display

RXA0099914-UN-08DEC08

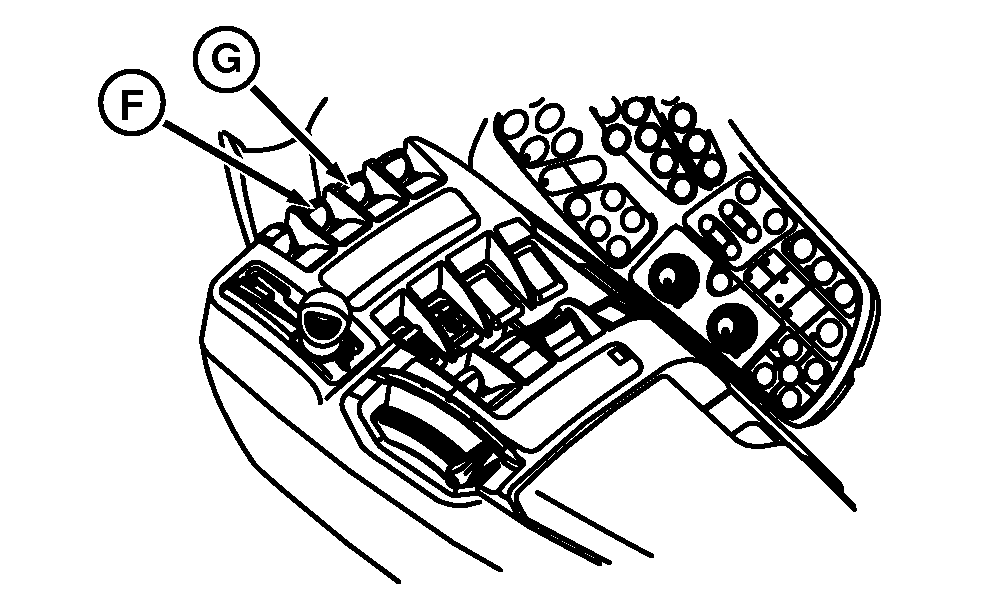

CommandArm

A - Jumper Hose

B - Hydraulic Temperature Box

C - Extend Flow Bar Graph

D - Flow Input Box

E - Extend Time Drop Down Box

F - SCV I Lever

G - SCV II Lever

H - Retract Flow Bar Graph

I - Retract Time Drop Down Box

Avoid operating tractor under load until transmission/hydraulic system has warmed up.

1. Install jumper hose (A) into SCV I coupler.

2. At CommandARM controls, select Menu button.

3. At the CommandCenter menu, select SCV.

4. When SCV page displays, in the left region, select hydraulic temperature box (B).

5. Select SCV I extend flow bar graph (C), then adjust desired rate of flow. Numeric flow input displays in flow input box (D).

6. Select arrows in SCV I extend time drop down box (E).

7. At the drop down menu, make selection.

8. Pull SCV I lever (F) to extend.

9. Select SCV I retract flow bar graph (H).

10. Select desired retract rate of flow.

11. Select arrows in SCV I retract time drop down box (I).

12. At the drop down menu, make selection.

13. Set SCV II as described above. At CommandCenter select SCV II extend and retract softkeys and pull SCV II lever (G) to perform system warm up.

14. Shift transmission to PARK position and operate engine at 1500 rpm.

15. Monitor left region hydraulic temperature box until temperature reaches 38° C (100 ° F).

16. Return SCV I and SCV II lever to neutral position.

17. Disconnect jumper hose.
