Changing Engine Oil and Filter

RXA0110206-UN-26AUG10

Drain Oil and Replace Filter

RG11628-UN-01FEB01

Drain Oil and Replace Filter

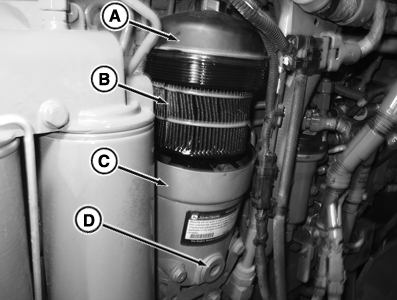

A - Filter Cover

B - Filter

C - Oil Filter Housing

D - Plug

NOTE: The initial break-in service interval of a new or rebuilt wet sleeve engine with Break-In Plus must go at least 100 hours to assure the surface mating of the rings and liners has had an opportunity to occur. The 100 hour minimum applies to all new or rebuilt engines. The maximum service interval is the same as the service interval recommendations listed in Engine Oil and Filter Service Intervals—Interim Tier 4 and Stage III B Engines located in section 90 of this Operator's Manual.

For subsequent oil changes, see Engine Oil and Filter Service Intervals—Interim Tier 4 and Stage III B Engines located in section 90 of this Operator's Manual.

1. Operate engine approximately 5 minutes to warm oil, then stop engine.
2. Remove engine fill cap (at dipstick). NOTE: Drain plug location may vary slightly depending on application.

3. Remove engine oil drain plug and drain crankcase oil while engine is warm. NOTE: Do not remove plug (D) on the base of the oil filter housing. Oil will automatically drain back into crankcase when filter is removed.

4. Using a 32 mm wrench, unscrew oil filter cover (A) and lift as shown to allow oil filter (B) to drain into crankcase.
5. Remove filter cover with oil filter attached.

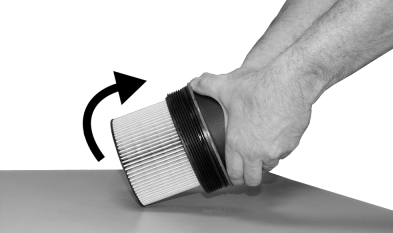

6. While holding cover, strike filter against solid surface to remove. Discard used filter.
7. Remove old O-ring and replace with new O-ring provided with new filter element.
8. Press new filter into cover until it snaps into place.
9. Insert cover and filter into oil filter housing, then tighten cover to torque specification.

   Item	Measurement	Specification
   Oil Filter Cover
   Cover	Torque	40 Nm (30 lb-ft)

10. Install drain plug after oil has been drained from crankcase.
11. Refill crankcase with seasonal viscosity grade oil.

    Crankcase Fill Capacity
    	8260R and, 8285R	8310, 8335R and 8360R
    1300 MFWD Axle	25L (26.4 Qt.)	N/A
    1500 MFWD Axle	28L (29.5 Qt.)
    ILS Axle	27.5L (29.1 Qt.)

12. Start engine and check for leaks.
13. Stop engine. Recheck oil level.
