MFWD and Independent Link Suspension Front Tire, Fender and Steering Stop Settings Example

NOTE:

RXA0083932
RXA0083932-UN-08SEP05

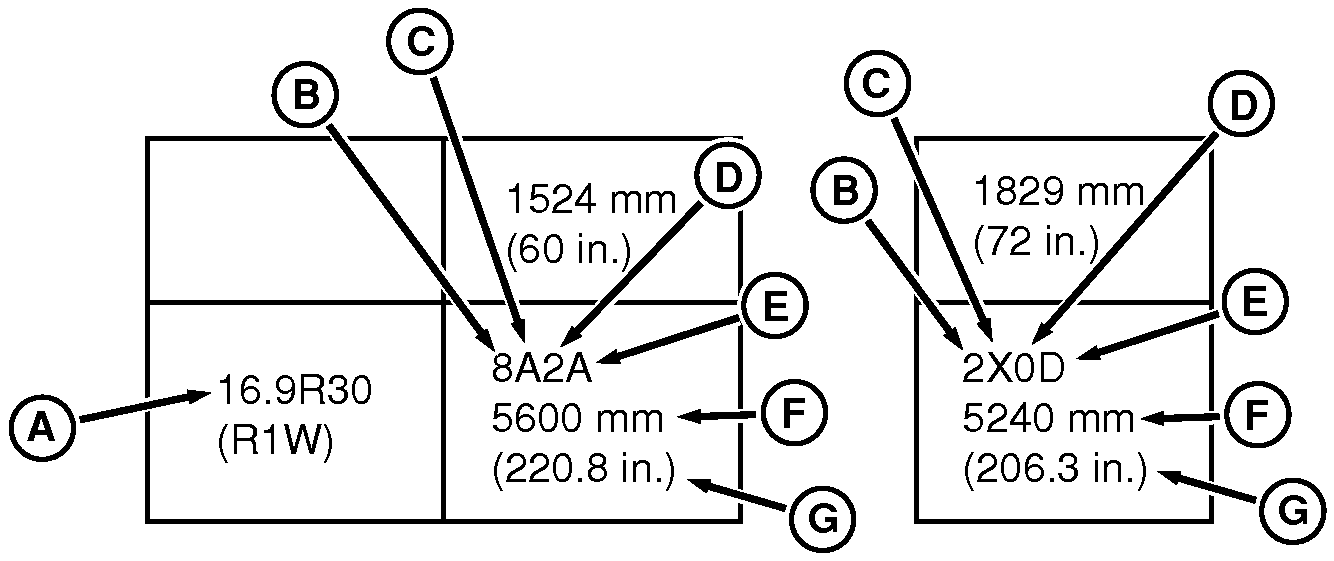

Explanation of Tire Option Tables

A - Tire Size

B - Two or Eight Position Rims

C - Tread Setting

D - Steering Stop Setting

E - Fender Setting

F - Turning Radius in Millimeters

G - Turning Radius in Inches

This is an explanation of the tables in the next several pages.

The first row across the top of the page list tread spacing in millimeters and inches.

Column one lists the tire size (A).

The first number (B) in column two identifies either two or eight position rim is used. The first letter (C) indicates which example to follow from the Eight Position Wheel Settings. There are only two possibilities for the two position rim, either in or out. In this table ”X” will represent the in setting and ”Z” will represent the out setting. The next number (D) is the correct steering stop position. The last letter (E) is the fender setting, which is taken from either Fender Settings for MFWD or Fender Settings for Independent Link Suspension. Entries (F) and (G) indicates turning radius in millimeters and inches respectively. If the last character is a ”w”, wide fenders are used for this application.
