Come Home Mode

RXA0110935-UN-16SEP10

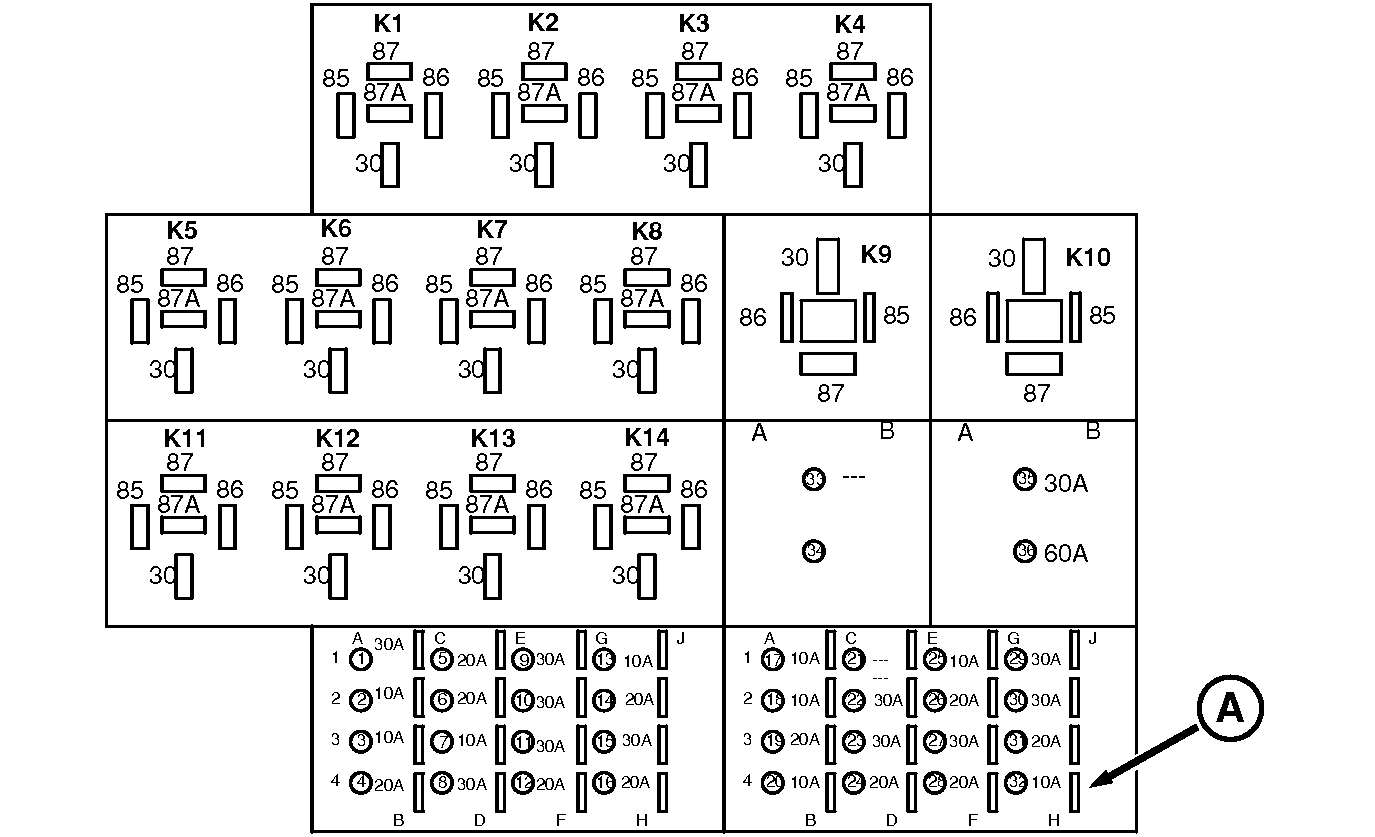

Remove Fuse #32 And Retain

A - Fuse # 32

NOTE: Come Home Mode allows the tractor, with engine operation, to be moved under limited capabilities.

Removing #32 fuse (A) enables electric hydraulic pump supplying oil for braking and steering. Enabling electric hydraulic pump allows tractor to be operated at a maximum of 8 km/h (5 mph) forward speed and 3 km/h (1.8 mph) reverse speed.

Fold seat backrest down to allow easier access and allow cab lighting to shine on load center when fuses are being inspected, replaced or removed.

1. Remove fuse # 32 (A) and retain.

2. Start engine.

   NOTE: When drive lever is removed from the Park position, any movement of brake pedals or steering wheel will engage electric hydraulic pump to supply hydraulic oil as needed.

   When driving tractor in come home mode, do not exceed tractor limited capability.

3. For PST equipped tractors, place shift lever in appropriate forward or reverse gear.

   For IVT/AutoPowr equipped tractors, move speed control lever to appropriate forward or reverse band.
