AUTO Exhaust Filter Cleaning Mode
AUTO Mode allows the Exhaust Filter
System to intelligently perform exhaust filter cleaning as required.
Cornerpost Display Indicators and CommandCenter prompts will provide
the operator information related to exhaust filter system activity.

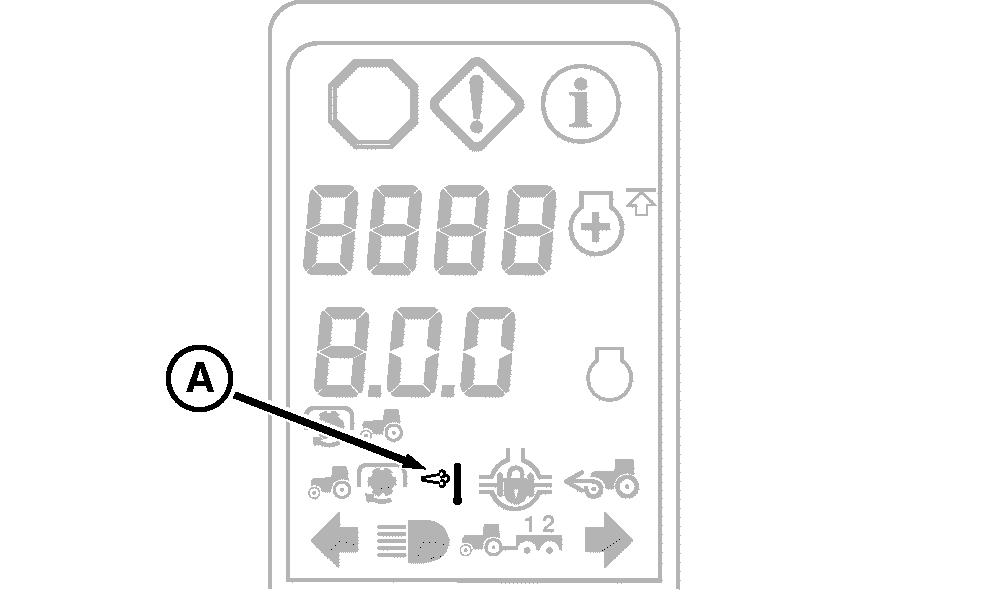

RXA0108859-UN-19JUL10
A - Exhaust Filter Cleaning Indicator
Exhaust Filter Cleaning Indicator (A) will illuminate when
the exhaust filter system is actively performing exhaust filter cleaning.
IMPORTANT: During exhaust filter cleaning operation, there may
be higher exhaust gas temperatures and the engine may operate at elevated
idle.
Exhaust Filter Restricted—Depending
on operating conditions, the Exhaust Filter System may request a change
in operation. CommandCenter prompts will recommend operational changes.
|
|
OURX935,00004D4-19-20110812
|
|
