Parked Exhaust Filter Cleaning

Parked Exhaust Filter Cleaning is an automated process which allows the system to clean the exhaust filter when required. During the process the engine speed will be controlled by the system and the machine must remain parked to complete the procedure. Time required for the Parked Exhaust Filter Cleaning process is dependent upon the level of exhaust filter restriction, ambient temperatures and current exhaust gas temperature. CommandCenter prompts will provide estimated time to completion.

Select the Parked Exhaust Filter Cleaning button, then follow CommandCenter prompts to complete the Parked Exhaust Filter Cleaning process.

NOTE:

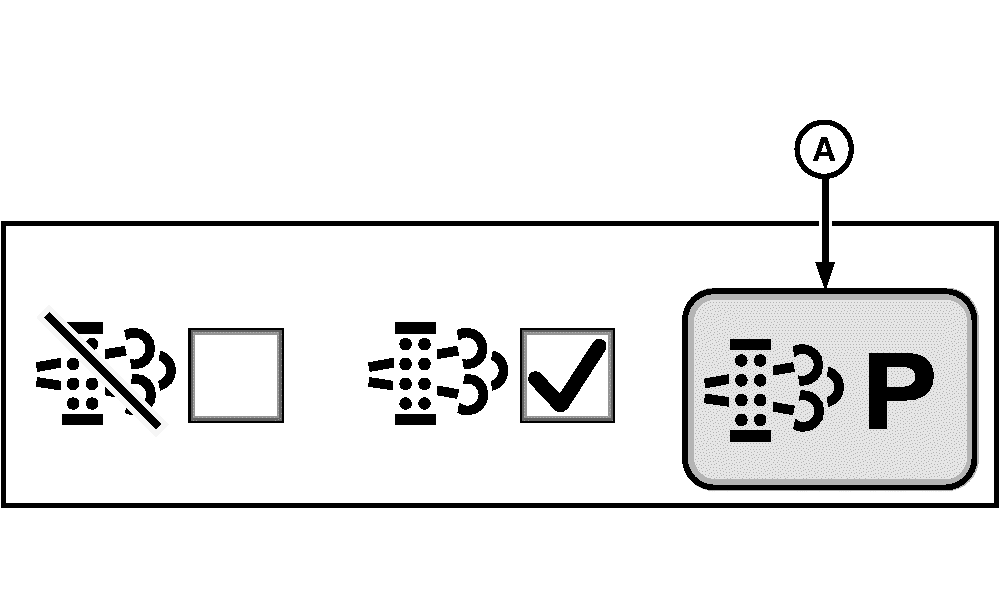

RXA0108767-UN-15JUL10

A - Parked Exhaust Filter Cleaning Button

IMPORTANT: During parked exhaust filter cleaning operation, the engine may operate at elevated idle.

Engine speed will be controlled by the machine during filter cleaning.

Once process has been started, a status page will appear.

There are two steps in the Parked Filter Cleaning process, preparation and cleaning. During the preparing to clean exhaust filter, the Exhaust Filter System will control engine speed to increase exhaust temperature. During the cleaning, diesel particulates or soot are cleaned from the Exhaust Filter System.

At any time during the parked procedure, the process can be cancelled by advancing the throttle, engaging transmission, selecting cancel button or stopping the engine.
