Putting Tractor In Motion

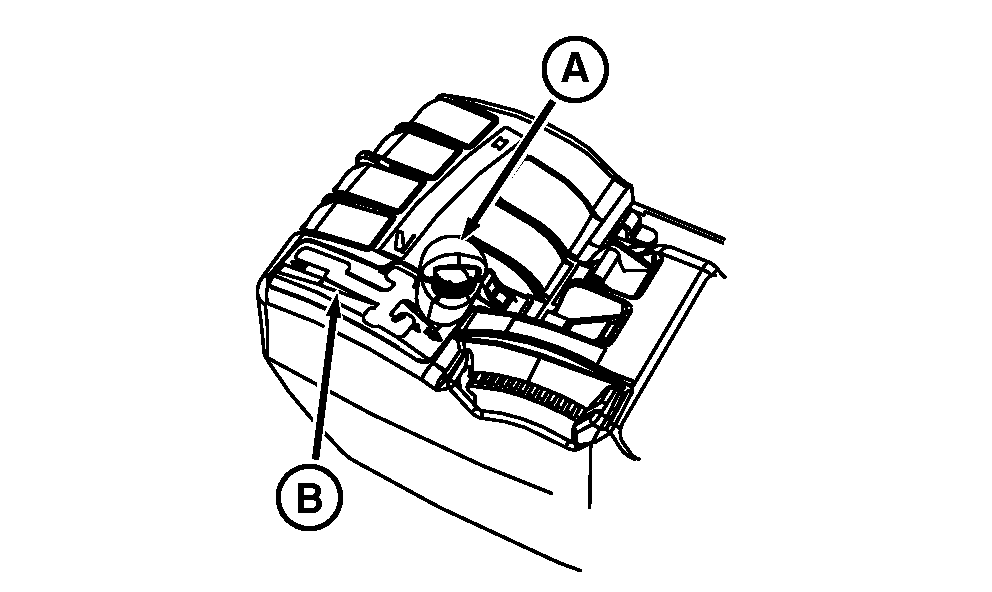

RXA0079023-UN-28FEB05

Right-Hand Reverser Shown

A - Speed Control Lever

B - Speed Band

CAUTION: Avoid possible injury due to sudden or unexpected acceleration. Be aware of set speeds and throttle position before putting tractor in motion.

NOTE: Tractor cannot be put in gear unless operator is seated. Information indicator will light and a corresponding message appears on the CommandCenter display when Forward, Reverse, or NEUTRAL positions are selected and operator is not in the seat.

To initiate motion, move lever from PARK position to either Forward or Reverse position with operator seated.

NOTE: Cold conditions may affect IVT/AutoPowr/ tractor performance:

• Engine speed will be limited to 1500 rpm if transmission oil temperature is less than -5°C (23 °F).
• Wheel speed is limited to 5 km/h (3 mph) if transmission oil temperature is less than -15°C (5 °F).

Using the clutch to put tractor in motion is not necessary.

NOTE: In the event of a seat switch failure, tractor can still be put into motion by cycling (depress/release) the clutch or brake pedals.

Move reverser lever into Forward or Reverse position.

Use throttle and speed control lever to obtain desired speed.
