iTEC Functions—IVT and AutoPowr Transmission

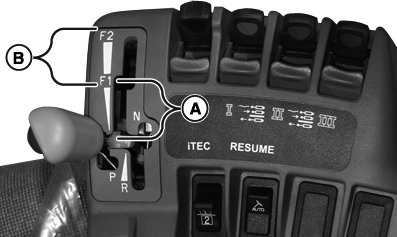

RXA0102174-UN-21APR09

A - Speed Band 1

B - Speed Band 2

IVT and AutoPowr Set Speed: The current forward set speed (FSS1 (A) or FSS2 (B) ) can be changed up or down with the set speed adjuster or encoder during Learn mode. Transmission ratio changes will be executed at the normal rate once the set speed has been changed.

The minimum set speed that can be saved is 0.8 km/h (0.5 mph). Changing the set speed or moving the lever during execution of a sequence will not cause iTEC to abort, but set speed changes will not be commanded for the remainder of the sequence.

If the set speed command via the iTEC sequence exceeds the maximum allowable speed in the range you are in, the set speeds will change, but be capped to the highest or lowest allowable set speed in that range. (Ex: You will get a maximum capped set speed if you were in speed range F1 and you execute a 50 km/h command). When a set speed is changed by iTEC, the control unit will react just as if the operator changed the set speed, pushing other set speeds up or down as a result.
