Adjusting Air Suspension Seat

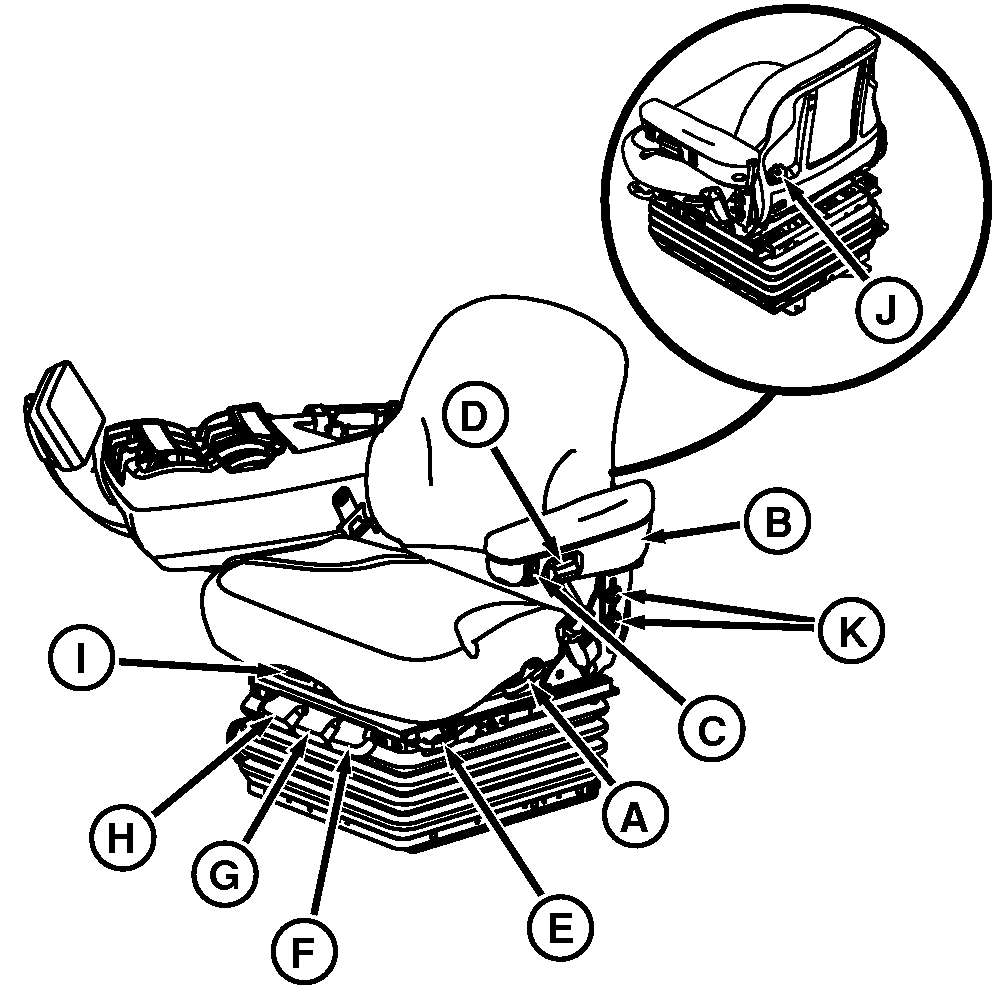

RXA0099794-UN-16DEC08

Seat With Fold-Down Armrest

B — Flip Up Armrest - Can be flipped up out of the way.

C — Height Adjustment - Turn key to ”ON”. Press lower portion of switch to lower seat or press upper portion of switch to raise seat.

D — Tilt Adjustment Knob - Turn knob to adjust armrest angle.

E — Fore Aft Adjustment Handle - Allows entire seat assembly to slide forward or backward.

F — Fore-Aft Isolation Handle - Push down on handle to allow operator seat to slide forward or backward. Pull up on handle to lock seat in place.

G — Lateral Isolation Handle - Push down on handle to unlock lateral seat suspension. Pull up on handle to lock seat in position.

H — Firmness Adjustment Handle - Handle adjusts suspension shock. Moving handle to farthest down position provides the firmest ride; farthest up position provides softest ride.

I — Seat Swivel - Lift up on handle to allow seat to swivel. Push down on handle to lock seat in position.

J — Lumbar Adjustment Knob - Turn clockwise to add support to lower back. Turn counterclockwise to lessen resistance to lower back.

K — Armrest Adjustment - Loosen cap screws to slide Arm Rest up or down. Retighten cap screws.
