Tractor Speed Displays On Corner Post Display And CommandCenter
RXA0098903-UN-19MAR09
RXA0098900-UN-20AUG08

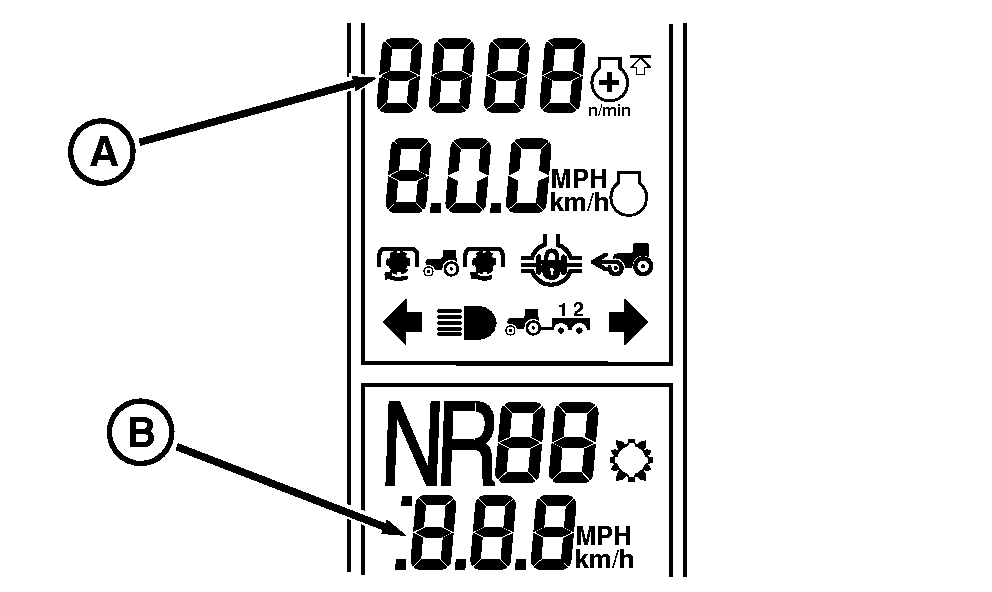

A - Ground Speed
B - Set Speed
C - Commanded Speed
A set speed (A) is the maximum ground speed of selected speed band.Ground Speed
The ground speed (B) value on tractors equipped with radar will always show a lower value than the set speed selected if there is measurable wheel slip.

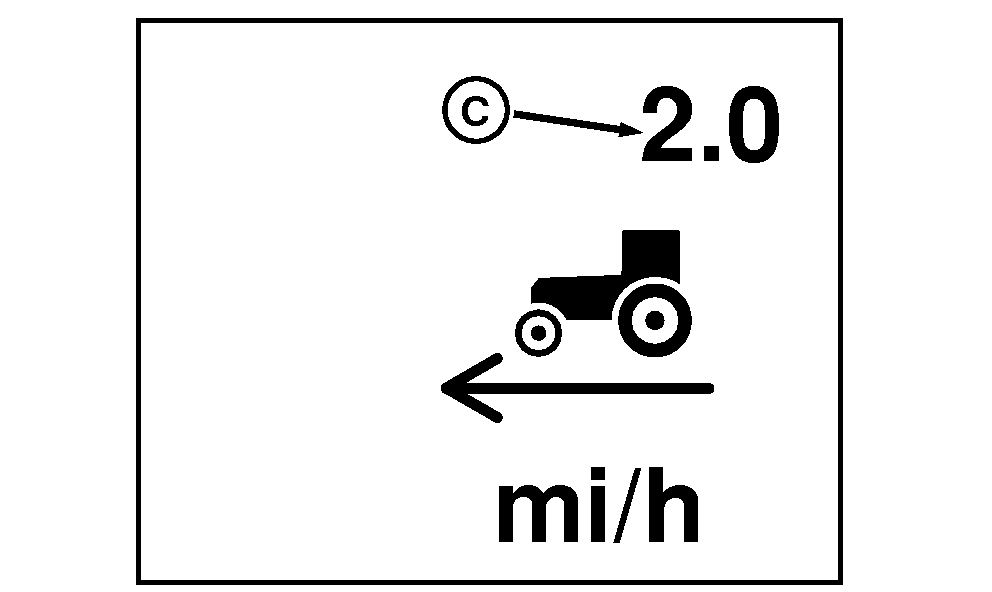

Commanded Speed (CommandCenter)
Commanded speed (C) is determined by any given position of the speed control lever at full engine speed. If the lever is pushed all the way forward to the end of the speed band slot, commanded speed will equal set speed.
|
