1300 MFWD Axle Toe-In Adjustment

RW56646A-UN-22OCT99

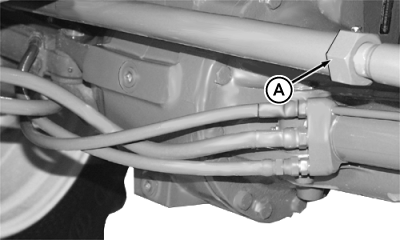

Loosen Jam Nuts

A - Jam Nut

1. Check to make sure axle is centered.

2. Loosen jam nuts (A) on both ends of the tie rod tube.

3. NOTE: Setting toe-in to 0.0 mm + or - 3 mm (1/8 in.) will provide least amount of tire wear on hard surfaced roads.

   Rotate tube to lengthen or shorten tie rod, as needed to obtain toe-in or toe-out of less than 3 mm (1/8 in.). Each 1/4 turn equals approximately 1.5 mm (1/16 in.) change.

4. Tighten jam nuts (A) on both ends of tie rod tube.

   Item	Measurement	Specification
   Toe-in or Toe-out	Distance	3 mm (1/8 in.)
   Jam Nut
   Nut	Torque	200 N˙m (150 lb-ft)
