USB Mode – Premium Radio

RXA0102616-UN-11FEB11

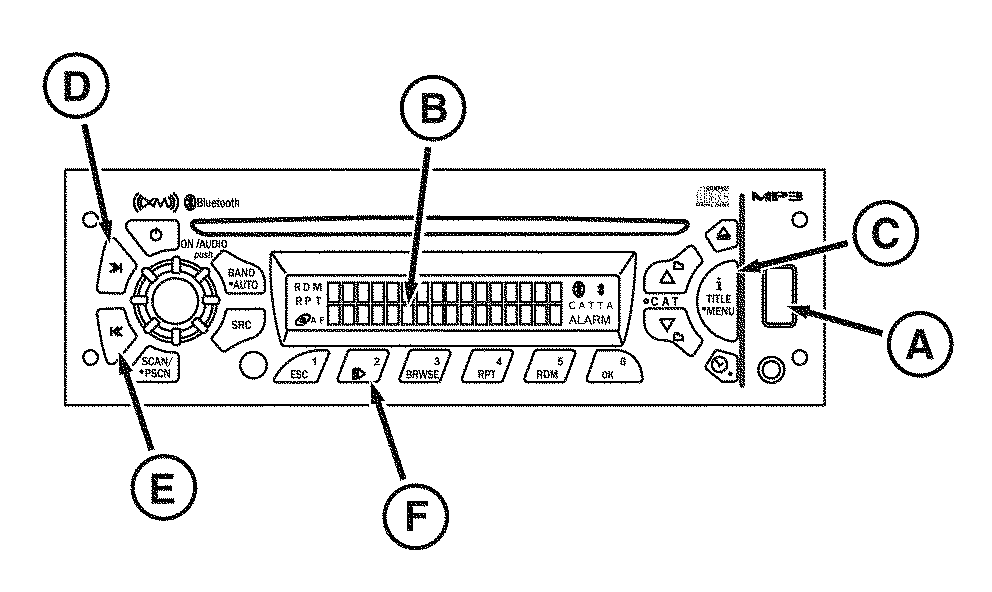

USB Mode Premium Radio

A - USB Connection

B - Display

C - iTitle Menu

D - Seek >>

E - Seek <<

F - Pause/Play CD

Premium Radio is capable of controlling and playing audio via USB devices (less than 1 GB in size) with the following audio formats: MP1, MP2, MP3 (VBR), WMA (ver 9 and VBR) and ACC (MPEG4 and M4A). Radio will be able to read and play a maximum of 50 folders and play lists. Long files, folders or a combination can reduce the number of files and folders that can be played. If device contains more than 50 folders or 11 folder levels, radio will only allow access to and navigate to the maximum number and ignore additional items.

• Insert USB device fully into USB connection (A)
• USB READING appears on the radio display (B) and audio will begin playing.

File type, elapsed time and track number are displayed. First track begins playing and continues sequentially through all tracks. After playing last track of the last folder, play continues at first track of the first folder or root directory.

NOTE: When playing MP3 or WMA files, press the i Title Menu button (C) to toggle between different radio on display views.

• Track number
• Artist Name
• Song Name
• Album Name
• Folder/PLST Name

Button Functions:

SEEK >> (D)

• Press for less than 2 seconds to forward to next track.
• Press and hold to fast forward. Release button, track will continue to play.

SEEK << (E)

• Press for less than 2 seconds to go to beginning of current track.
• Press within the first 10 seconds of track, radio goes to previous track.
• Press button within the first 14 second to go to beginning of previous track.
• Press and hold button to fast reverse.
• Release button, track continues to play.

PAUSE/PLAY (F)

• Press to pause a track, “PAUSE” is displayed and audio is muted.
• Press PAUSE/PLAY again to resume playing the track.
