Premium Radio AM/FM Home Page on the CommandCenter™

RXA0113181-UN-27JAN11

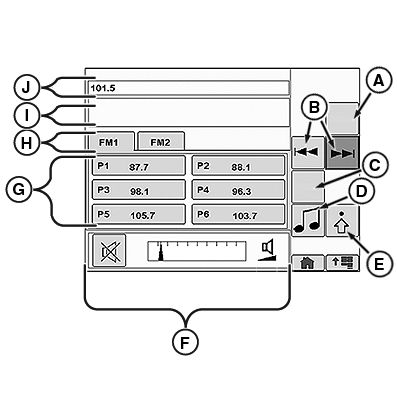

FM Home Page Shown

A - SCAN

B - Next Preset/Previous Preset

C - Band

D - Source Select

E - Audio Settings

F - Volume Control

G - Presets 1-6

H - FM1/FM2 Tabs

I - Display Area 1

J - Display Area 2

SCAN Mode (A) will scan available radio stations and pause for 8 seconds before moving onto the next station. To cycle through channels use Previous Preset/Next Preset (B). Six presets can be programmed in the Preset Stations softkeys (G). To change a preset, select and hold the preset for 3 seconds. Two banks of presets are available for FM home page. Cycle through the banks using the tabs (H).

Band softkey (C) will cycle through radio tuner sources (AM, FM, Weather, and XM). The Select Source softkey (D) will give the operator the ability to cycle through radio tuner sources and external sources (see Premium Radio Source Select on the CommandCenter™ in this section).

In Display Area 1 (I) artist name and song name will be visible if available from the radio station. In Display Area 2 (J) channel number, preset number, and station name will be visible.

AM and Weather home pages are similar to FM home page.
