CommandCenter Pages Description And Functions

At the iTEC Operation page:

RXA0116589-UN-12MAY11

iTEC Shortcut Button

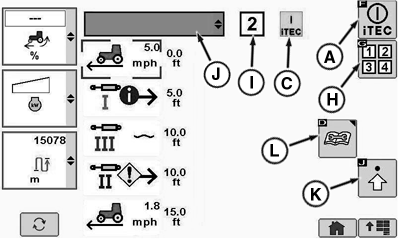

RXA0110476-UN-10SEP10

iTEC Operations Page With Factory Installed 1 And 2 Sequence Button

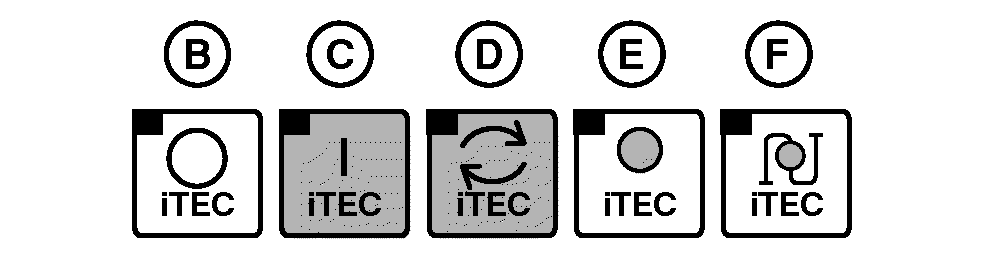

RXA0108636-UN-28JUL10

Application Status Options

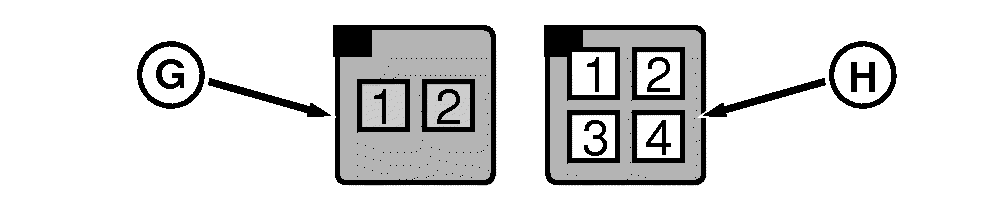

RXA0107036-UN-16APR10

Factory Installed Sequence Softkey 1 And 2 And Field Installed Kit Option With Sequence Softkey 1 Through 4

A - iTEC ON/OFF Softkey

B - OFF Indicator

C - ON Indicator

D - Sequence Executing Indicator

E - Learning Mode Indicator

F - Learning Distance Mode Indicator

G - Sequence Softkey (1 and 2)

H - Sequence Softkey (3 and 4) ¹

I - Sequence In Process Indicator Box

J - Implement

K - Advanced Settings

At the iTEC Edit page:

RXA0116590-UN-12MAY11

iTEC→ Advanced Settings

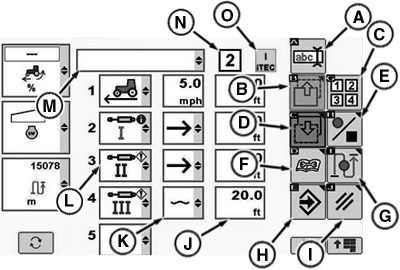

RXA0110492-UN-08SEP10

iTEC Edit Page With Factory Installed 1 through 4 Sequence Softkey

1. Select iTEC softkey.

2. Select iTEC On/Off softkey to turn iTEC On.

3. Select Advanced Settings softkey.

• A—Edit Implement Name Softkey navigates to edit implement name.
• B—Previous Page Softkey
• C—Sequence Softkey toggles between sequences 1—4.²
• D—Next Page Softkey
• E—Start/Stop Record Sequence
• F—Status Page Softkey
• G—Learn Distance Only Softkey³
• H—Enter/Save Softkey
• I— Cancel Softkey
• J— Distance Input Box (Distance at which function listed in left column is triggered after sequence execution.)
• K— Operation Drop Down Box
• L— Function Drop Down Box
• M— Implement Identification Box
• N—Sequence Box displays sequence 2 is active.
• O— iTEC is ON

At the iTEC Status Page:

At the iTEC Status Page:

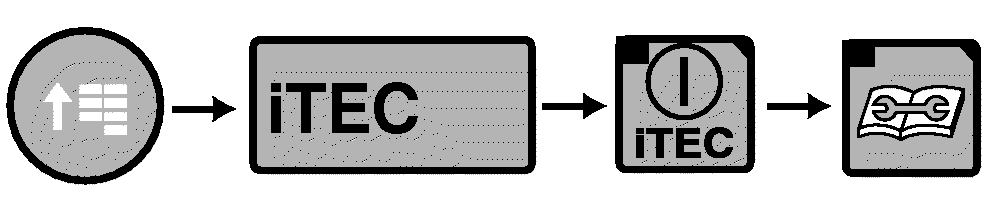

RXA0120600-UN-14SEP11

CommandARM Menu Button → iTEC → iTEC On/Off Softkey → Diagnostics Softkey

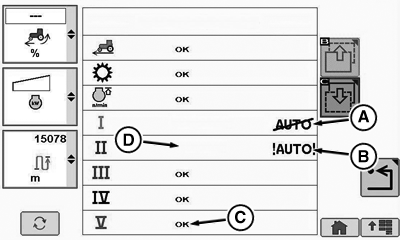

RXA0119769-UN-17AUG11

iTEC Status Page

1. Select CommandARM Menu button.

2. Select iTEC.

3. Select iTEC On/Off softkey to turn iTEC On.

4. Select Diagnostics softkey.

• A—Information Alert
• B—Service Alert
• C—Status OK
• D—Reason Function May Not Be Automated

When an Information Alert (A) icon is present, the operator will have manual control of the function. When a Service Alert (B) icon is present, iTEC execution of function is not allowed.

The Status Page will display the current conditions of functions that are controlled by iTEC. The Status column will display if a function has an alert. If there is an alert present, the cause will be displayed in the Automation Request/Reason column. The Automation Request/Reason column will display an OK or a reason for an alert. The Automation Request/Reason column will also display if the function is running under the control of iTEC. Both the Automation Request/Reason and the Status columns are updated automatically.

1. Select iTEC.

2. Select Advanced Settings softkey.

All Function/Operation/Distance Options found in center region are indicated below.

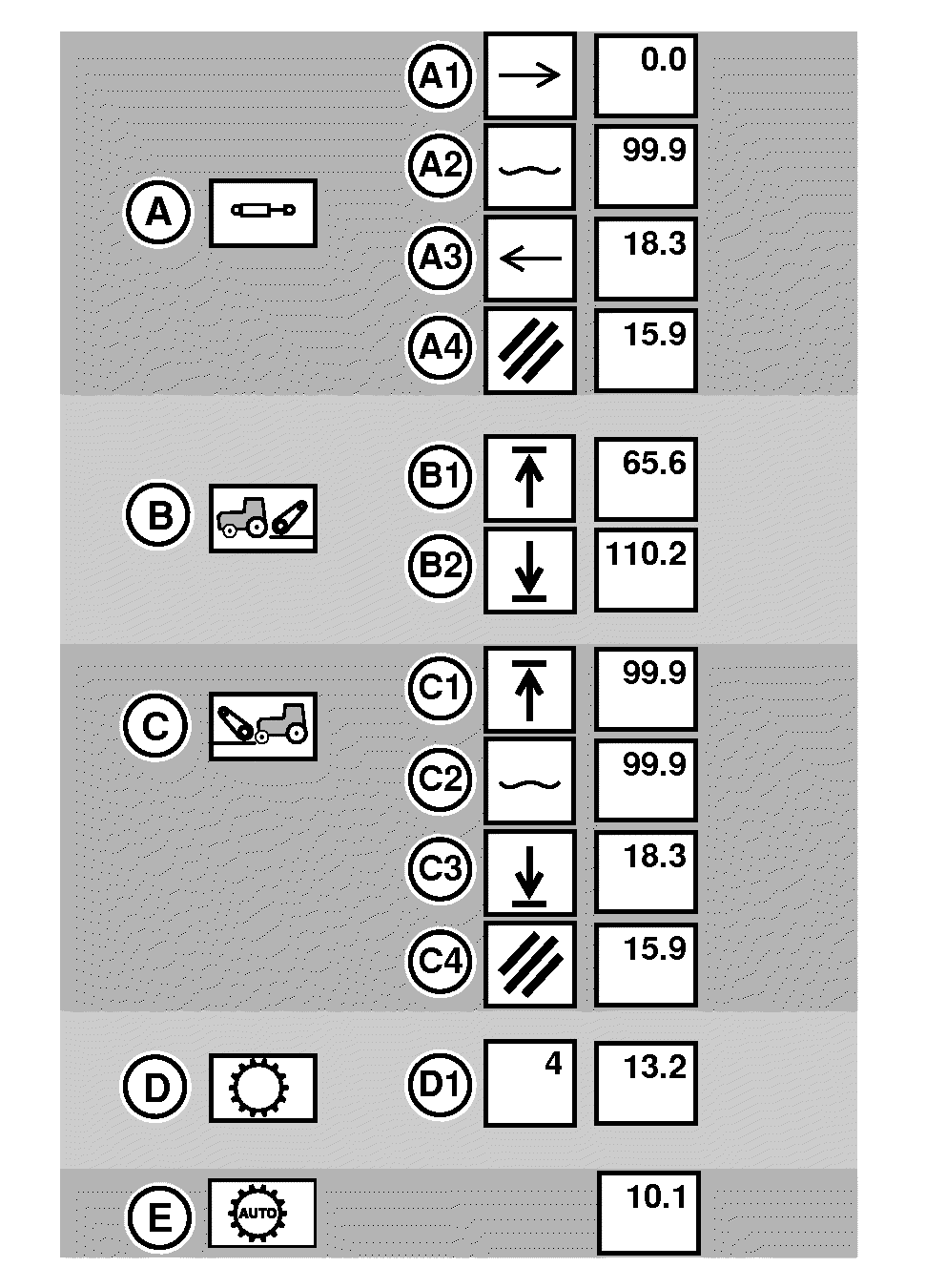

RXA0119872-UN-14SEP11

First Column: Function, Second Column: Operation, Third Column: Distance

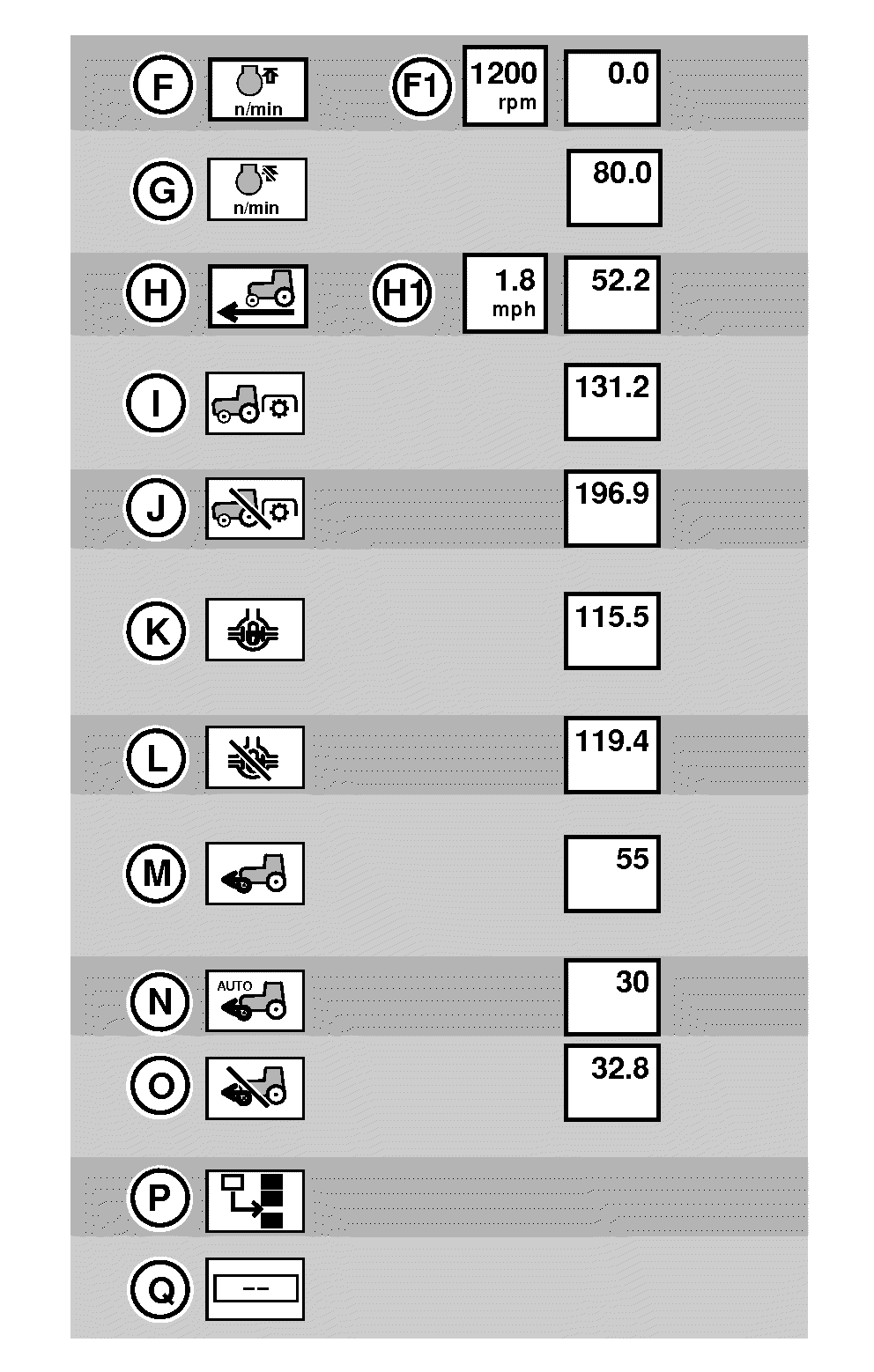

RXA0119873-UN-14SEP11

First Column: Function, Second Column: Operation, Third Column: Distance—Continued

• A—SCV's
  • A-1 Extend
  • A-2 Float
  • A-3 Retract
  • A-4 Cancel

• B—Rear Hitch
  • B-1 Raise
  • B-2 Lower
• C—Front Hitch
  • C-1 Raise
  • C-2 Float
  • C-3 Lower
  • C-4 Cancel
• D—Transmission⁴
  • D-1 Gear
• E—Automatic PowerShift (APS)
• F—FieldCruise
  • F-1 RPM (1100—2200)
• G— FieldCruise Off
• H—Set Speed ⁵
  • H-1 Speed

    (0.8—55 km/h (0.5—34.4 mph) both in increments of 0.1.

• I—Rear PTO
• J—Rear PTO Off
• K—Differential Lock
• LDifferential Lock Off
• M—MFWD On
• N—MFWD (Auto)
• O—MFWD (Brake Assist)
• P—Insert (Used to shift function down while in edit mode.)
• Q—Delete

Distance options are entered either in metric or US/Imperial distances and using either keypad or input box

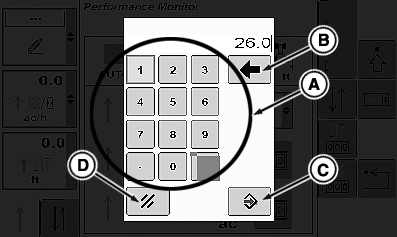

RXA0107389-UN-16APR10

Keypad To Set Distance

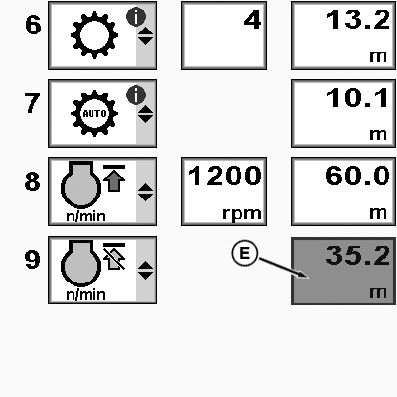

RXA0108932-UN-27JUL10

Distance Input Box On iTEC Edit Page

A - Keypad

B - Backspace

C - Save/Enter

D - Cancel

E - Input Box

Entering US/Imperial distances or when using TouchScreen:

1. Select Distance input box.

   NOTE: To make a correction on keypad, select Backspace key (B).

2. When keypad displays, select desired distance by selecting appropriate keypad (A) numbers, then select enter button (C). Cancel by selecting cancel button (D).

Entering metric units of measure or when using Thumb wheel:

1. Select Distance input box (E).

2. Input box highlights, then scroll forward to increase numbers or rearward to decrease value in input box.

3. Select CommandARM Confirm button.

NOTE: A - Information Alert, Function Limited - will display if function is not in correct state when sequence is in passive mode, programmed, but not executing. (Ex: PTO Switch Off).

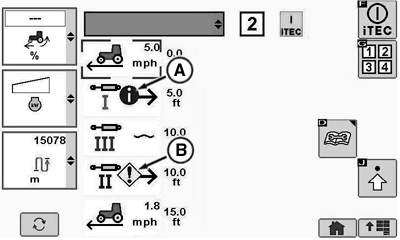

RXA0110484-UN-10SEP10

Function Limited Alerts

A - Information Alert—Function Limited

B - Service Alert—Function Limited

B - Service Alert, Function Limited - Function will not execute while in execution mode and some conditions may be related to a Service Alert for that function. (Ex: PTO Switch Fault).

Function Limited	Corrective Action
Differential Lock	Vehicle speed is above threshold to turn off differential lock.
PTO	Switch is not in the ON-position.
Vehicle Speed	Right Hand Reverser (if equipped) is in Reverse
	Current Set Speed < 0.8 km/h
APS	No Automatic PowerShift resume gear selected
Rear hitch	Rear Hitch Locked
Front Hitch	Front Hitch Locked
	Front Hitch not in front hitch mode
SCV	SCV locked
	Valve is not in Float position
FieldCruise	Access Manager has FieldCruise locked
