Using Manual Mirror (If Equipped)

Turn mirror arm adjustment knob (A) counterclockwise to adjust mirror arm (B) in or out to desired length. Turn mirror adjustment knob clockwise hold mirror in place.

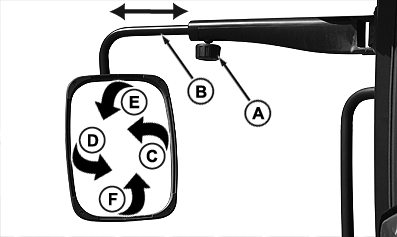

RXA0120037-UN-06SEP11

Manual Mirror

A - Mirror Arm Adjustment Knob

B - Mirror Arm

C - Inside Edge

D - Outside Edge

E - Upper Edge

F - Lower Edge

Press inside edge (C) of mirror glass to rotate mirror in.

Press outside edge (D) of mirror glass to rotate mirror out.

Press upper edge (E) of mirror glass to rotate mirror up.

Press lower edge (F) of mirror glass to rotate mirror down.

Using a soft cloth after mirror is adjusted, using a soft cloth, wipe any smudges off the face of the mirror.
