Cleaning MFWD Axle Vent Filter

NOTE: If axle breather is packed with dirt, soak in solvent before blowing air through breather vent. Interval may vary according to operating conditions.

RXA0078357-UN-08DEC04

RXA0109341-UN-16AUG10

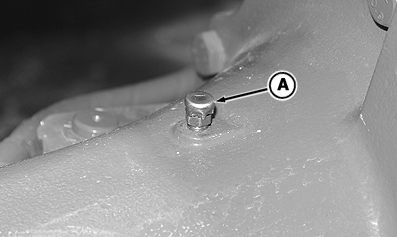

A - MFWD Axle Vent Filter (1300 Axle)

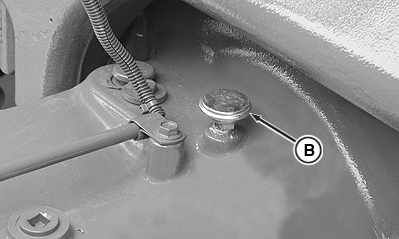

B - MFWD Axle Vent Filter (1500 Axle)

IMPORTANT: Allowing excess dirt and foreign material to build up in vent filter may cause damage to axle seals.

Remove axle vent filter. Clean by blowing air through vent filter (bottom to top).
