Services Included In 250 Hour Service

RXA0120124-UN-13SEP11

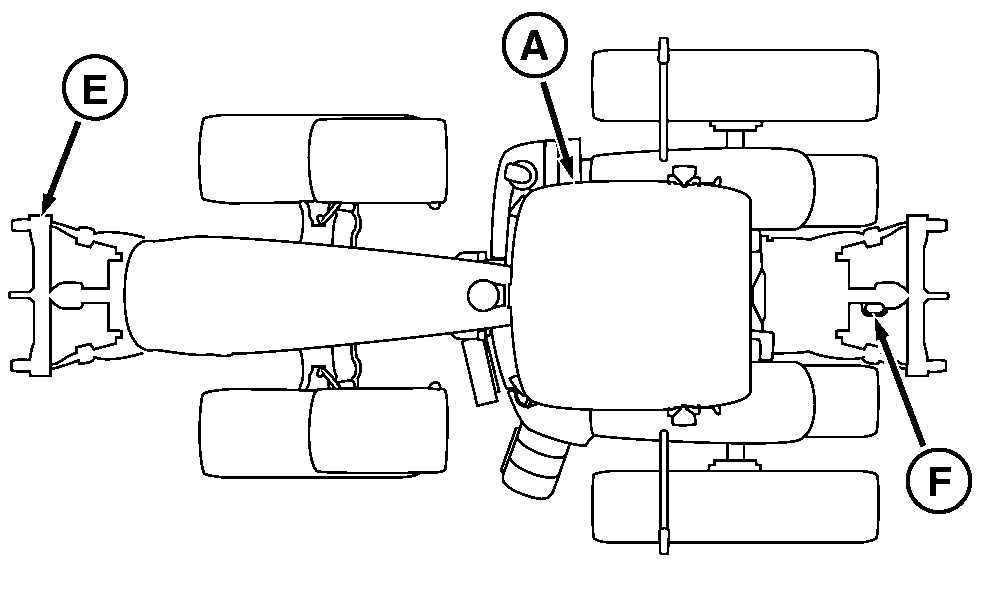

250 Hour Services-Top View

RXA0119133-UN-01SEP11

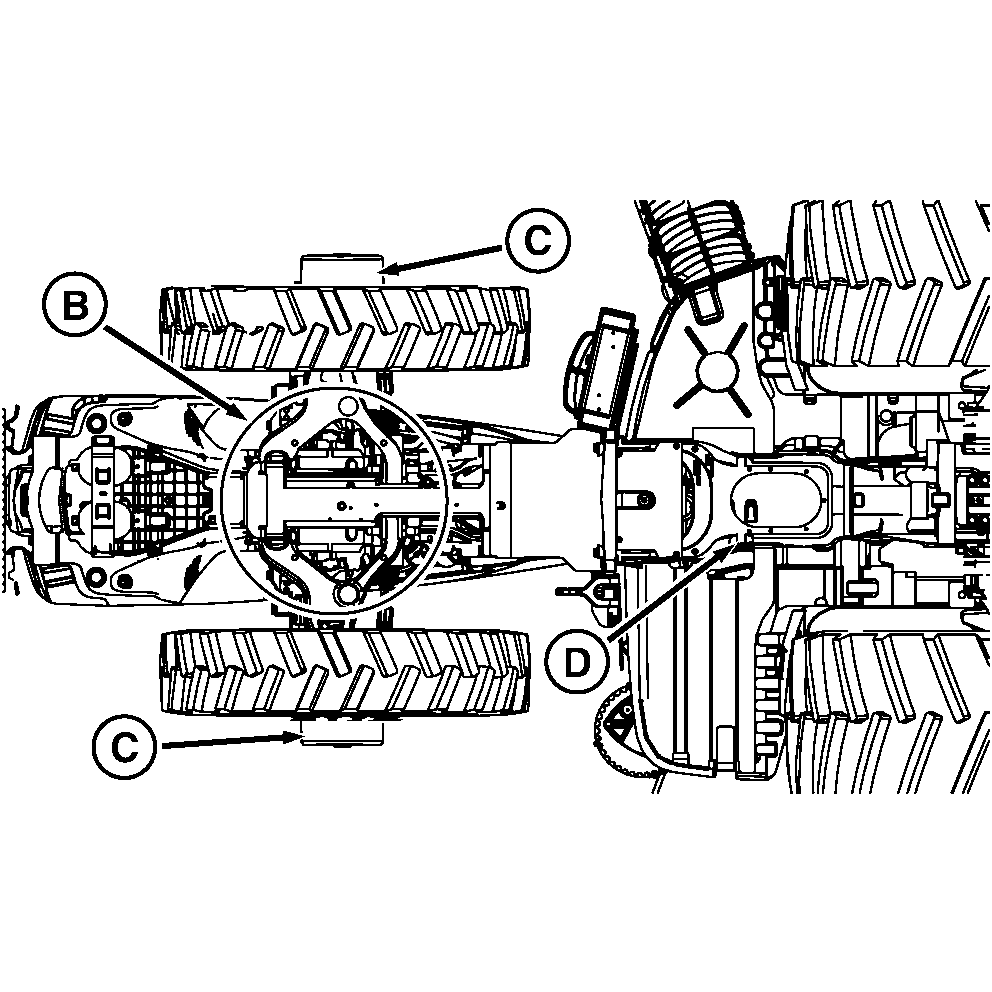

250 Hour Service-Bottom View

• A — Checking Neutral Start System—IVT/AutoPowr Transmission

  Checking Neutral Start System—PowerShift Transmission

  Checking Transmission PARK Position

• B — Lubricating MFWD King Pins, Tie Rod Ends, Axle Pivot Fittings And U-Joints

  Lubricating Independent Link Suspension King Pins, Tie Rod Ends, Axle Pivot Fittings And U-Joints (If Equipped)

  Lubricating ActiveCommand Steering Arm

  Checking MFWD Differential Case Oil Level

• C — Checking MFWD or Independent Link Suspension Wheel Hub Oil Level
• D — Draining Fuel Tank Sump
• E — Lubricating Front Hitch (If Equipped)
• F — Checking Manually Operated Hitch For Wear

  Check Remote Controlled Hitch For Wear

  Checking for Wear At Tow Hitch (Piton Fix)

  Checking for Wear At Ball Type Tow Hitch

  Checking Tow-Hook On Pick-Up Hitch For Wear

When scheduled service at any hourly level is performed, also perform all subordinate hourly level services. See Section 95, Observe Service Intervals for table listing main and subordinate service tasks.
