Connecting Front Hitch SCVS

Oil flow is routed through rear SCV hoses A, B and O, M to front SCV hoses (G, H, and S, T). see table.

RXA0117432
RXA0117432-UN-13SEP11

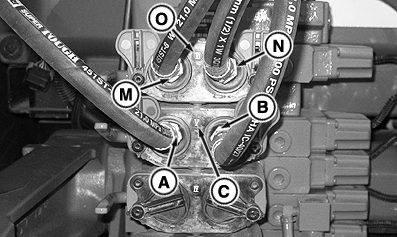

Rear SCV's

RXA0117434
RXA0117434-UN-13SEP11

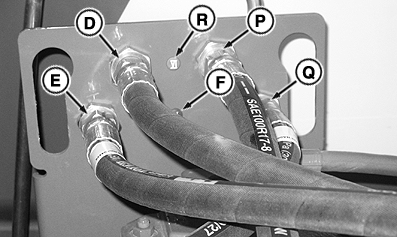

Rear SCV Hose Bracket

RXA0117436
RXA0117436-UN-13SEP11

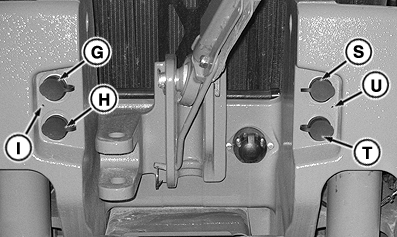

Front Hitch

RXA0120509
RXA0120509-UN-13SEP11

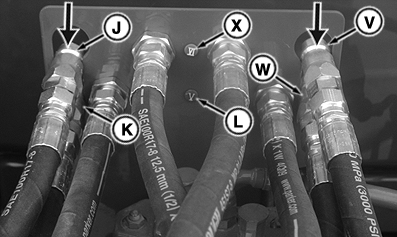

Rear SCV Hose Bracket (Hoses in Stored Position)

A - SCV V Extend Hose (Rear SCV)

B - SCV V Retract Hose (Rear SCV)

C - SCV V Number Button (Rear SCV)

D - SCV V Extend Hose (Rear SCV Hose Bracket)

E - SCV V Retract Hose (Rear SCV Hose Bracket)

F - SCV V Number Button (Rear SCV Hose Bracket)

G - SCV V Extend Hose (Front Hitch)

H - SCV V Retract Hose (Front Hitch)

I - SCV V Number Button (Front Hitch)

J - SCV V Extend Hose (Stored Position)

K - SCV V Retract Hose (Stored Position)

L - SCV V Number Button (Stored Position)

M - SCV VI Extend Hose (Rear SCV)

N - SCV VI Retract Hose (Rear SCV)

O - SCV V Number Button (Rear SCV)

P - SCV VI Extend Hose (Rear SCV Hose Bracket)

Q - SCV VI Retract Hose (Rear SCV Hose Bracket)

R - SCV VI Number Button (Rear SCV Hose Bracket)

S - SCV VI Extend Hose (Front Hitch)

T - SCV VI Retract Hose (Front Hitch)

U - SCV VI Number Button (Front Hitch)

V - SCV VI Extend Hose (Stored Position)

W - SCV VI Retract Hose (Stored Position)

X - SCV VI Number Button (Stored Position)

Factory installed front hitches are hydraulically connected to top two rear SCVs regardless of how many SCVs tractor is equipped with. Any rear SCV can be used for front SCV provided there is adequate hose length to make connection. Avoid confusion by making sure front hitch SCV hoses and couplers are correctly identified with appropriate SCV number button. Number buttons are available through your John Deere dealer.

NOTE: In applications in which all rear SCVs are required for rear implements, hoses connecting front hitch are disconnected at rear SCV stack and placed in stowed position.



Rear SCV

Rear SCV Hose Bracket

Rear SCV Hose Bracket (Stored Position)

Front Hitch SCVs

SCV V Extend Hose

A

D

G

J


SCV V Retract

B

E

H

K

SCV V Numeral

C

F

I

L


SCV VI Extend Hose

M

P

S

V


SCV VI Retract Hose

N

Q

T

W

SCV VI Numeral

O

R

U

X


OURX935,00005AC-19-20110913
