Checking For Wear At Ball-Type Tow Hitch

CAUTION: Parts that have reached or exceeded their wear limit must be replaced with new parts.

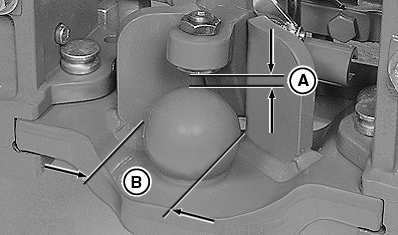

RXA0095865-UN-29AUG07

A - Gap

B - Ball Diameter

Check gap (A) at catch.

Item	Measurement	Specification
Gap at catch	Maximum permissible clearance	4.0 mm 0.16 in.

Check diameter (B) of the ball.

Item	Measurement	Specification
Ball diameter	Wear limit or minimum diameter	78.0 mm 3.07 in.
