Checking For Wear At Tow-Hook on Pick-Up Hitch

CAUTION: Parts that have reached or exceeded their wear limit must be replaced with new parts.

RXA0095866-UN-29AUG07

LX1041808-UN-27NOV06

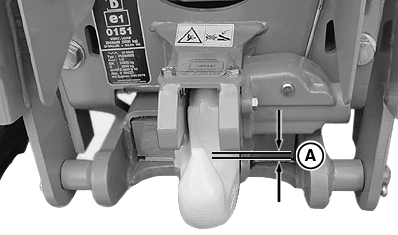

A - Gap

Item	Measurement	Specification
Gap at catch	Maximum permissible clearance	10.0 mm 0.39 in.

Read the ”D”-value (unit of measurement = kN) from pick-up hitch type plate.

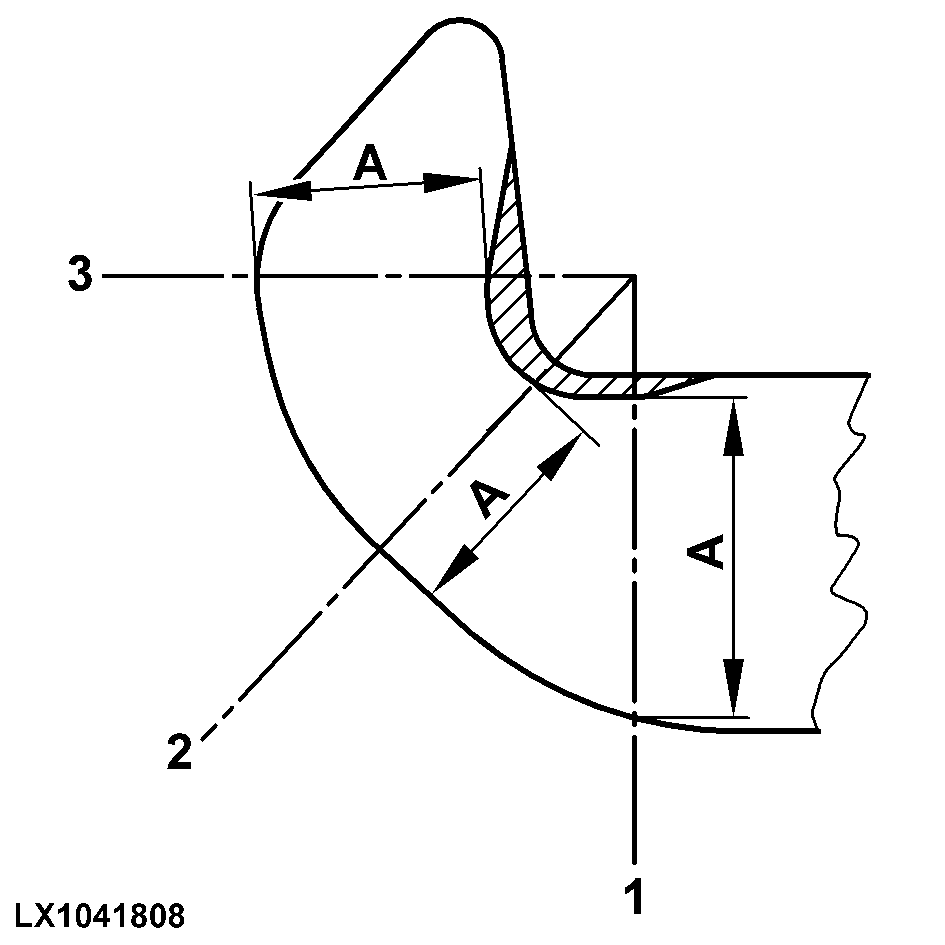

If the ”D”-value indicated on the type plate is 65 or less, observe the following wear tolerances (A).

Item	Measurement	Specification
Tow hook, diameter (D = 65 or less)	Minimum value (A), diameter 1	43.5 mm 1.71 in.

If the ”D”-value indicated on the type plate is greater than 65, observe the following wear tolerances (A).

Item	Measurement	Specification
Tow hook, diameter (D = more than 65)	Minimum value (A), diameter 1	45.0 mm 1.77 in.
