CommandCenter™ Input Fields

RXA0116480-UN-11MAY11

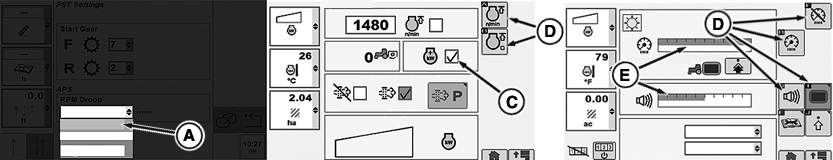

Example Of CommandCenter Drop Down Boxes, Check Boxes, Softkeys, and Bar Graphs

RXA0106062-UN-14JUL10

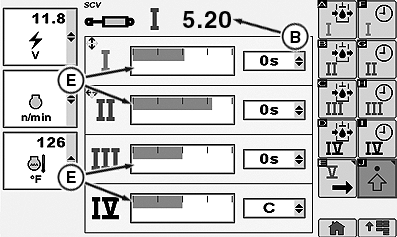

Example Of CommandCenter Input Box And Bar Graphs

(A) — Drop-Down Boxes

Drop-down box has a border with a numeric or text value and up/down arrows on the right side that allow operator to select specific value from a pre-populated list.

Highlight drop-down box, list appears, then make selection from options available.

To close drop-down box without making a selection, select Cancel button. List closes and original value remains.

(B) — Input Box

Input box has a border with a numeric value or text. This input box allows the operator to select and enter new values or text.

NOTE: If using thumb wheel, the faster thumb wheel is rotated, the faster values incrementally change. Rotating thumb wheel forward increases value and rotating thumb wheel rearward decreases value.

To change a value, highlight input box, then make selection.

If there is a large range of values, a numeric key pad appears, allowing selection of each digit.

(C) — Check Box

Check box is a square with a border. The function controlled by a check box toggles on or off depending if box is checked or left unchecked respectively.

(D) — Softkeys

Select softkeys to activate a prescribed function or navigate to a page.

(E) — Bar Graph

To change a value, highlight bar graph and make selection.
