Installing and Using Clevis Assembly

RW26279-UN-12JUN99

RXA0085808-UN-10JAN06

RW26282-UN-12JUN99

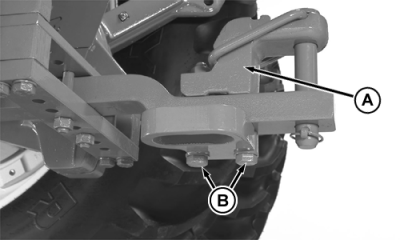

A - Clevis Assembly

B - Cap Screw

C - Lift Pin with Handle

D - Lock Pin

IMPORTANT: Remove clevis assembly, before using PTO shaft, or whenever PTO shaft might cause interference.

Clevis assembly (A) must be attached ONLY to top of drawbar.

Install clevis assembly and tighten cap screws (B).

Item	Measurement	Specification
Clevis Assembly Retaining Cap Screws
Category 3	Torque	750 N˙m (553 lb-ft)
Category 4	Torque	430 N˙m (320 lb-ft)

Remove lock pin (D). Lift pin with handle (C) and position in notch of clevis assembly.

Attach implement.

Insert pin only through drawbar, not through clevis assembly, if towed implement also has a clevis assembly. DO NOT insert pin through all four members.
