Using External Raise and Lower Switches

CAUTION:

RXA0100898
RXA0100898-UN-06MAR09

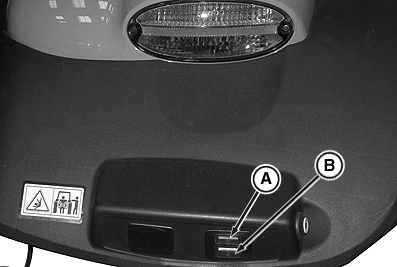

Fender Mounted Switches

A - External Raise Switch

B - External Lower Switch

To prevent injury or damage caused by tractor movement, be sure transmission is in PARK position before using external raise and lower switches. Stay clear of interference points when using external raise and lower switches.

When external switches (A and B) are pressed hitch moves slowly, but slowly increases speed the longer hitch switch is held down.

Press and hold external switches to raise (A) or lower (B) hitch. Hitch moves at slow speed when using external switches.

NOTE: Hitch command lever cannot be used simultaneously with external raise/lower switch.

OURX935,000080C-19-20090401
