Using Deluxe Stabilizers

RW55548A-UN-06NOV99

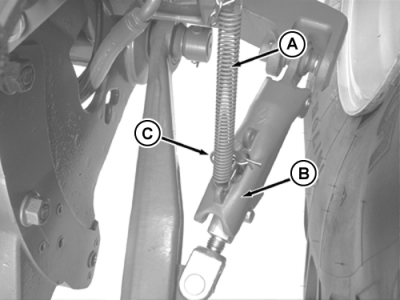

A - Chain/Spring

B - Latch

C - Pin

IMPORTANT: Check full range of hitch movement when using stabilizing system. Check for interference when tractor is equipped with 710/70R38 or larger tires.

The stabilizing system is operated by means of chain/spring (A) and latch (B). If latch is raised (remove pin (C) to raise latch), the draft links have lateral sway, otherwise they are locked.

Chain (A) Short:

Draft links are locked in raised position (rigid setting), in lowered position they have lateral sway.

Chain (A) Long:

Draft links are locked in all positions.

RXA0053470-UN-17MAY01

RXA0053471-UN-17MAY01

A - Retainer

B - Latch

C - Handle

Back tractor to the center of the implement. Remove retainer (A), raise latch (B) and lift handle (C).

Adjust support by turning handle. After adjustment, lower the latch and install retainer (A).
