Attaching Implement to Walterscheid Couplers

RXA0086593-UN-09FEB06

Equipment Mast (Cat 3)

RXA0098806-UN-12AUG08

A - Distance

B - Distance

C - Yoke

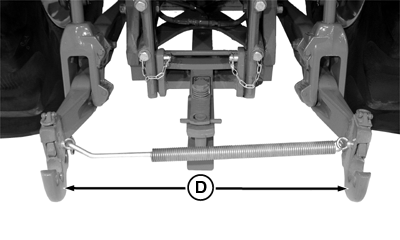

D - Coupler Hooks

CAUTION: To avoid bodily injury or machine damage, put transmission in PARK position and check the full range of hitch for interference, binding, or PTO separation whenever an implement is attached.

Do not stand between tractor and implement.

1. Turn load/depth control fully counterclockwise before attaching implements.

2. CAUTION: Avoid bodily injury. DO NOT use raise/lower switch when attaching or detaching implements. Use only hitch control lever or EXTERNAL raise/lower switches.

   Lower hitch using hitch control lever. Back up tractor until the coupler hooks (D) are below the implement hitch pins.

3. Slowly raise hitch until pins are engaged in coupler hooks and correctly locked into position.

4. Attach center link to the implement mast. Mast height on implement must not exceed 885 mm (34.8 in.).

   IMPORTANT: If the implement upper mast opening is greater than 70 mm (2.8 in.) or if there is less than 14 mm (0.6 in.) around the upper mast hole, use a combination of shims on both sides of the center link ball.
