Detaching Implement from Walterscheid Couplers

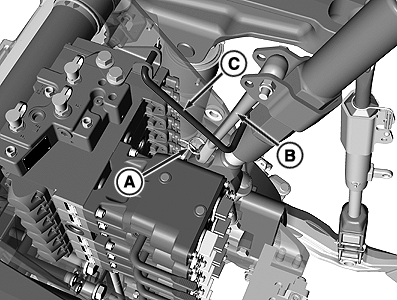

RXA0098641-UN-25AUG08

A - Retaining Ring

B - Link Handle

C - Lock Retaining Link

1. Lower implement to the ground.

   NOTE: For tractors equipped with Independent Link Suspension induce tractor leveling with engine operating:

   • Depress clutch
   • Put transmission shift lever in gear for four seconds
   • Move shift lever to NEUTRAL position
   • Repeat until suspension is level



2. Disconnect hydraulic hoses and electrical connections.

3. Retract lower hooks and lower the hitch until couplers are clear of implement hitch pins.

4. Disconnect center link from implement.

5. Carefully drive tractor forward away from implement.

6. Lock center link into the transport position. Remove retaining ring (A). Lift center link handle (B) and lock retaining link (C) into position.
