Attaching Implement to Quick Coupler

RXA0087968-UN-21MAR06

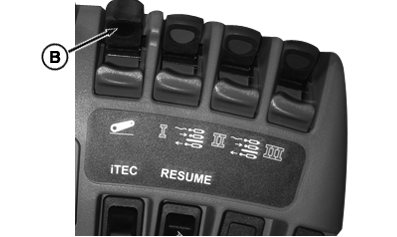

RXA0101383-UN-01APR09

Lever

A - Coupler Latch Handle

B - Hitch Control Lever

CAUTION: To avoid bodily injury or machine damage, put transmission in PARK position and check the full range of hitch for interference, binding, or PTO separation whenever an implement is attached.

Do not stand between tractor and implement.

1. Pull up on coupler latch handles (A).

2. Lower hitch until quick coupler hooks are lower than implement hitch pins.

3. Back up tractor to implement.

4. Raise hitch enough to engage implement pins in hooks.

5. CAUTION: To avoid bodily injury or machine damage make sure implement is attached correctly. Incorrect attachment can allow implement to be pulled over the tractor wheel and onto the operator station.

   Push coupler latch handles down to lock implement to quick coupler.

6. Connect hydraulic hoses and electrical connections.

7. IMPORTANT: Check for implement interference. Drawbar removal may be necessary.

   Slowly pull hitch control lever (B) to raise implement. Lower implement to ground and adjust upper height limit control if necessary.

   IMPORTANT:

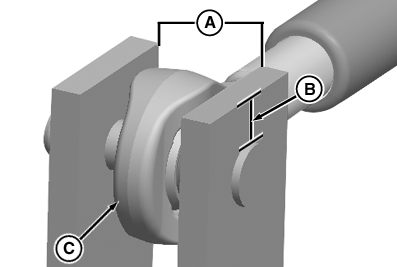

   RXA0086593-UN-09FEB06

   Equipment Mast (Cat 3)

   A - Distance

   B - Distance

   C - Yoke

   If center link is attached directly to implement, measure upper mast opening (A) and height above pin (B). If upper mast opening is greater than 70 mm (2.8 in.) or height above pin is less than 14 mm (0.6 in.), use shims to limit/restrict swiveling of yoke (C).
   • If connecting to a category 4N hitch, use a combination of shims on both sides of center link pivot.



---
