Detaching Implement from Quick Coupler

RXA0087968-UN-21MAR06

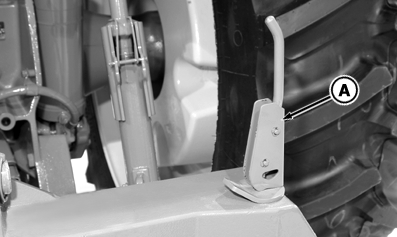

Coupler Latch Handle

A - Latch Lever

1. Raise both latch levers (A) with implement raised.

2. Disconnect hydraulic hoses and electrical connections.

3. Lower implement to ground. Continue lowering quick coupler until hooks clear implement hitch pins.

   NOTE: For tractors equipped with Independent Link Suspension induce tractor leveling with engine operating:

   • Depress clutch
   • Put transmission shift lever in gear for four seconds
   • Move shift lever to NEUTRAL position
   • Repeat until suspension is level



4. Carefully drive tractor away from implement.
