Operating Cab Heat, Defrost, and Air Conditioning—Standard Equipment

RXA0100317-UN-25FEB09

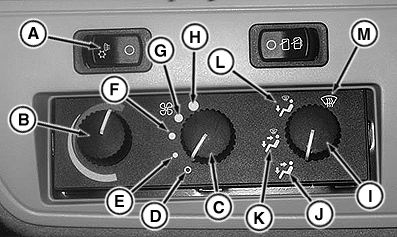

Air Conditioning Controls

A - Air Conditioning Switch

B - Temperature Control Knob

C - Fan Control Knob

D - OFF

E - Low Speed

F - Medium Speed

G - High Speed

H - Purge

I - Air Flow Direction Knob

J - Cab And Floor

K - Defrost, Floor And Cab

L - Defrost And Floor

M - Defrost

Turn Temperature Control Knob (B) to red zone for heating or blue zone for cooling.

IMPORTANT: If system is not cooling properly, turn air conditioning switch off to avoid possible compressor damage.

NOTE: Purge position is used for rapid cab cool down.

Turn fan speed control knob (C) to desired setting (D—H).

Turn air flow direction knob (I) for desired outlet (J—M).
