Using Telescoping Heated Electric Mirror (If Equipped)

RXA0098963-UN-26FEB09

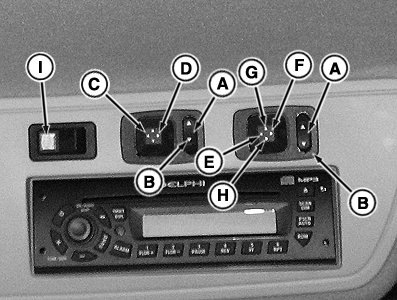

Rear View Mirror Switch

RXA0100486-UN-06MAR09

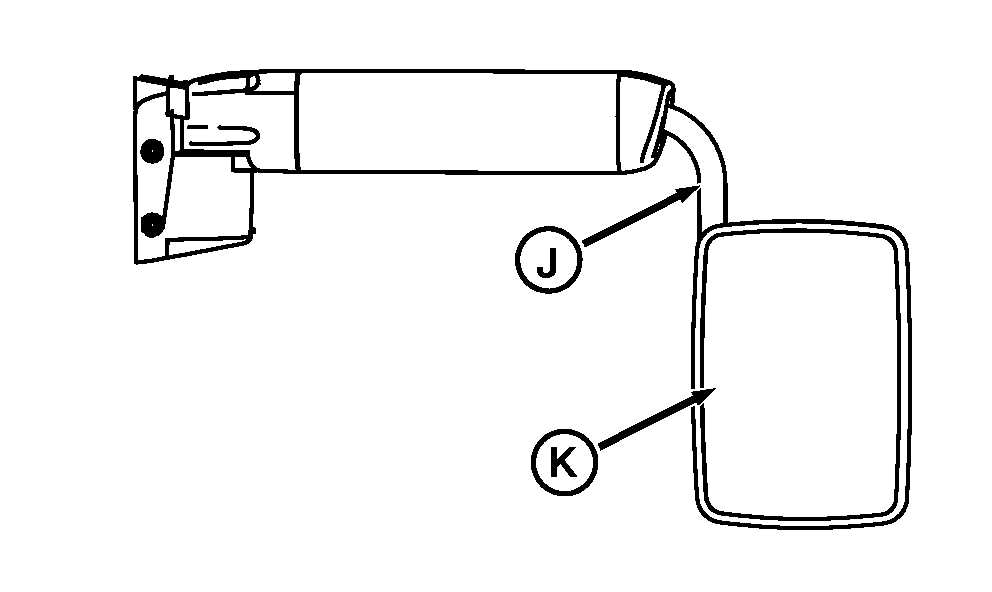

Telescoping Electrical Rear View Mirror (Right-Hand Side Shown)

A - Selection Switch—Right Mirror

B - Selection Switch—Left Mirror

C - Extend

D - Retract

E - Angle Left

F - Angle Right

G - Tilt— Up

H - Tilt—Down

I - Heating Switch

J - Telescoping Arm

K - Mirror

1. Push switch (A) to control right mirror. Push switch upward to select mirror angle adjustments or downward for telescoping arm position.

2. Push switch (B) to control left mirror. Push switch upward to select mirror angle adjustments or downward for telescoping arm position.

3. Push adjustment switch (C) to left to extend or right to retract mirrors. Both mirrors can extend/retract depending on which way toggle switch is flipped (A or B).

4. Push switch (G) to tilt mirror up or switch (H) to tilt mirror down.

5. Push switch (E) to angle mirror left or switch (F) to angle mirror right.

   NOTE: Heating switch (I) activates/deactivates heated mirror function. Switch will light when heated mirrors are activated, mirror heater is not on timer. Heated mirrors are deactivated with the ignition key switch, if heating switch (I) doesn’t return to off position the mirrors will be activated again when ignition switch is turned to accessory or on position.
