Operating the Wagon Hitch

RXA0100506-UN-11FEB09

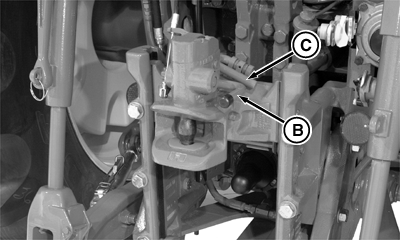

RXA0056499-UN-29AUG01

A - Lever (In Cab)

B - Release Lever

C - Height Adjustment Lever

Wagon hitch can be released from the operator's seat using lever (A).

CAUTION: Avoid personal injury. Keep hands and fingers from hitch latching mechanism.

The wagon hitch closes automatically when trailer towing eye enters the hitch or can be manually closed using release lever (B).

Wagon hitch height can be adjusted using height adjustment lever (C).
