3 in 1 Hitch System

CAUTION: Avoid personal injury. Keep hands and fingers from pickup hitch latching mechanism.

RXA0100506-UN-11FEB09

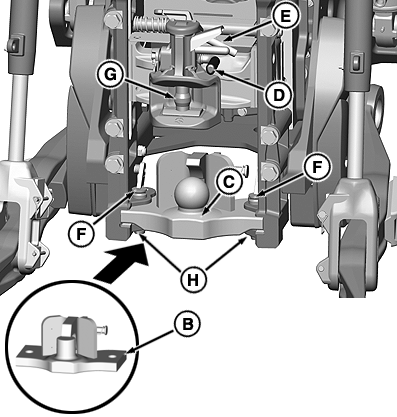

RXA0086664-UN-14FEB06

A - Lever (In Cab)

B - Piton Coupling

C - Ball Coupling

D - Wagon Hitch Release Lever

E - Wagon Hitch Height Adjustment Lever

F - Locking Pins

G - Wagon Hitch

H - Spring Release Pins

The pickup hitch pin closes automatically when trailer towing eye enters the pickup hitch or can be manually closed using lever (A).

Install piton coupling (B) or ball coupling (C) by pulling spring release pins (H) and locking pins (F). Slide either coupling into pickup hitch rails and reinstall locking pins.

IMPORTANT: If using 35 mm (1 3/8 in.) PTO or PTO adaptor with 3 in 1 hitch rails, it may be necessary to limit steering angles to prevent PTO drive line from rubbing and/or damaging hitch rails.
