Using Individual Brake Pedals

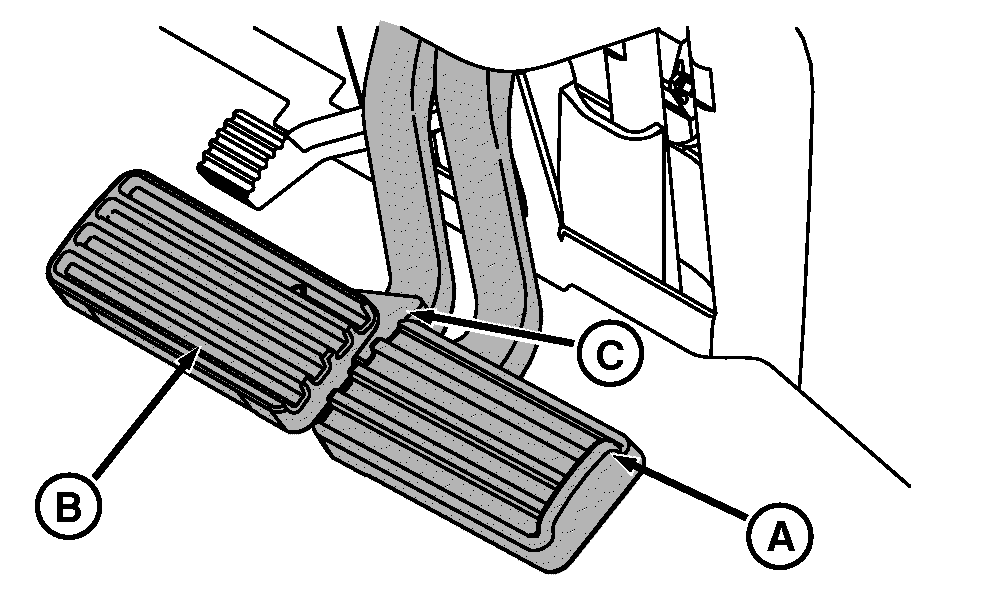

RXA0122335-UN-17NOV11
A - Right Brake Pedal
B - Left Brake Pedal
C - Pedal Lock Tab
Individual brake pedals (A) and (B) can assist with slow speed off-road turning, such as hooking up to implements. At low idle, AutoClutch feature stops tractor if operator depresses only one brake pedal. IT IS NOT NECESSARY TO DEPRESS CLUTCH PEDAL.To assist in hooking up implement, depress either brake pedal while slowly increasing engine speed until desired turn is achieved. Returning engine speed to low idle while continuing to depress one brake pedal will slow tractor to a stop.
CAUTION: Avoid possible injury. Braking tractor while commanding
a high engine speed will require higher brake pedal force.
Avoid possible injury due to sudden or unexpected acceleration. When brake pedals are released, tractor will automatically accelerate to speed currently commanded by throttle and speed control lever.
|
