Disconnecting Hydraulic Hoses

IMPORTANT: Steam cleaning or use high pressure washer in the area around the SCV connections and electronics may damage equipment. Any pressure washer exceeding 1000 psi ( 75 bar). should be kept a minimum of 200 mm ( 8 in.) away from connections.

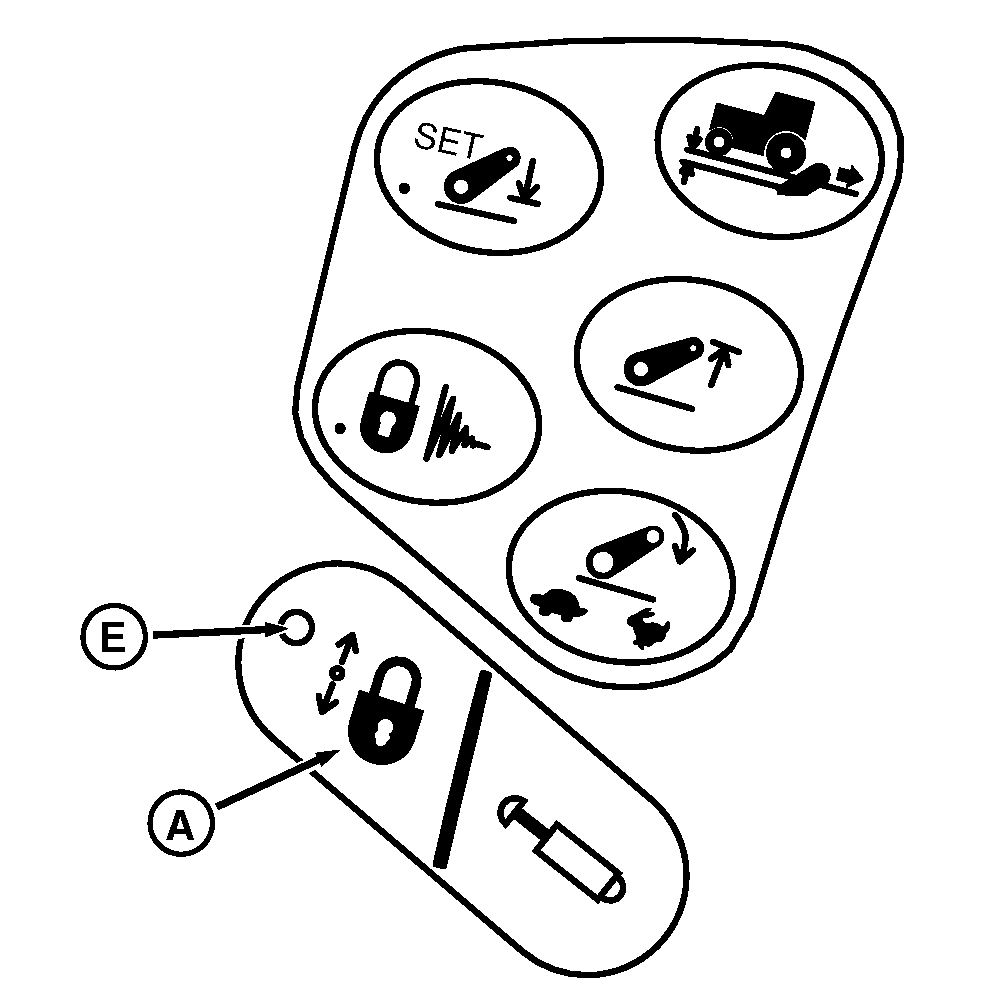

RXA0099927-UN-20FEB09

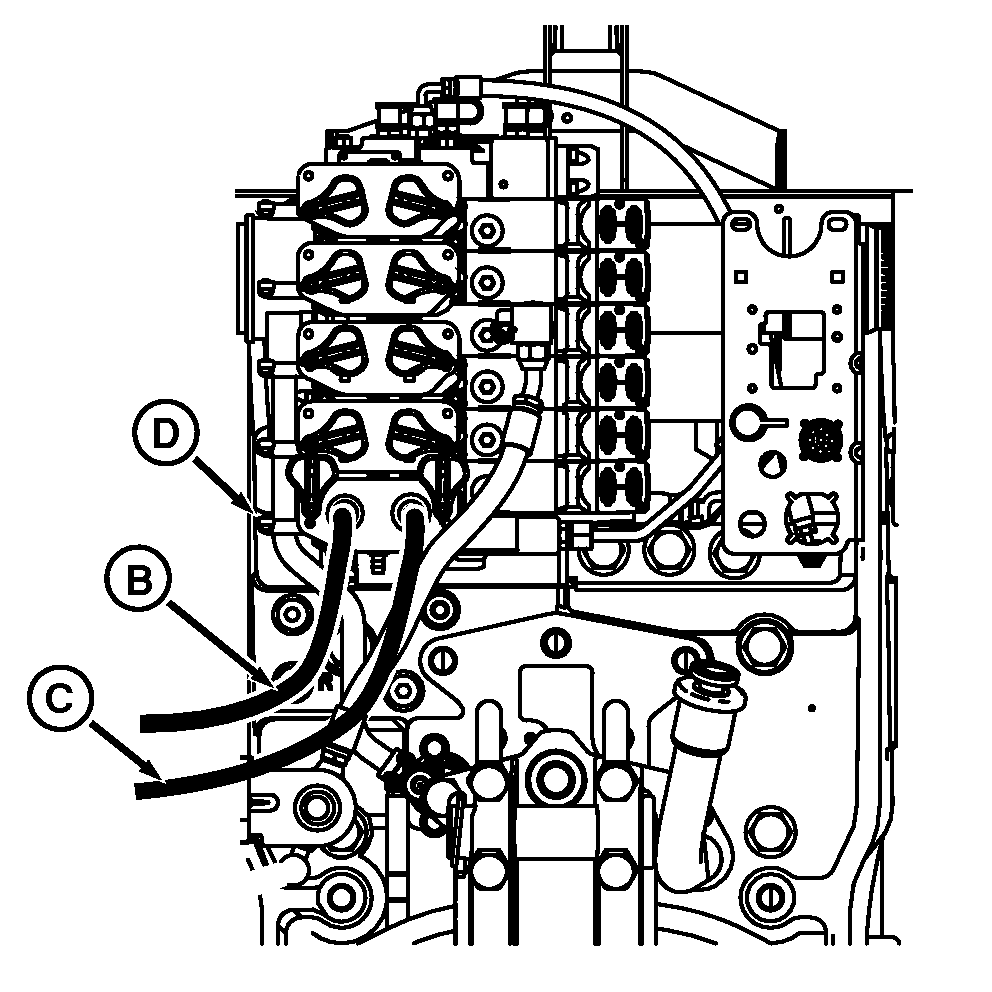

RXA0097039-UN-13AUG08

A - Transport Lock Button

B - Extend Hose

C - Retract Hose

D - Lever

E - Transport Lock Light

CAUTION: Push Transport Lock button (A) before detaching implements to prevent implement movement and possible personal injury.

1. Lower implement to ground.

2. Push Transport Lock button to engage transport lock.

3. Observe CommandARM™ Controls to ensure transport lock light (E) is displayed.

4. Push lever (D) down to release both extend hose (B) and retract hose (C).
